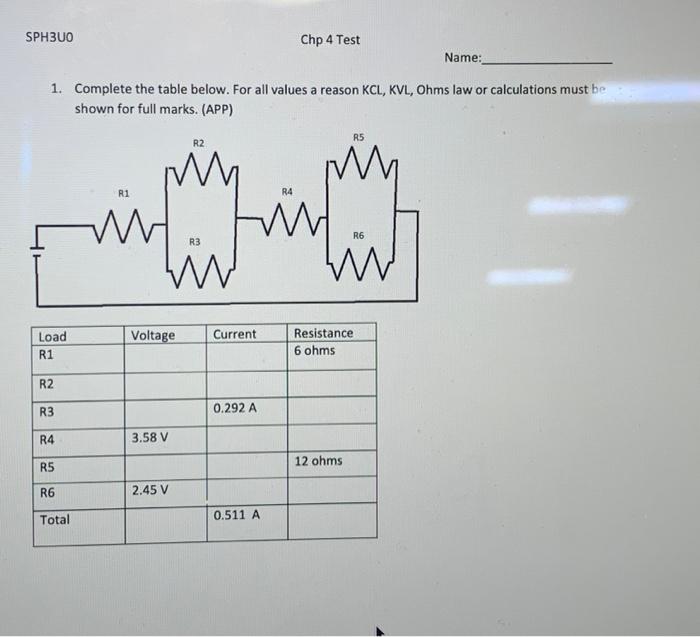

SPH3U0 Chp 4 Test Name: 1. Complete the table below. For all values a reason KCL, KVL, Ohms law or calculations must be shown for full marks. (APP) R5 R2 R1 R4 R6 R3 int in Current 0.292 A 0.511 A Load R1 R2 R3 R4 R5 R6 Total Voltage 3.58 V 2.45 V Resistance 6 ohms 12 ohms

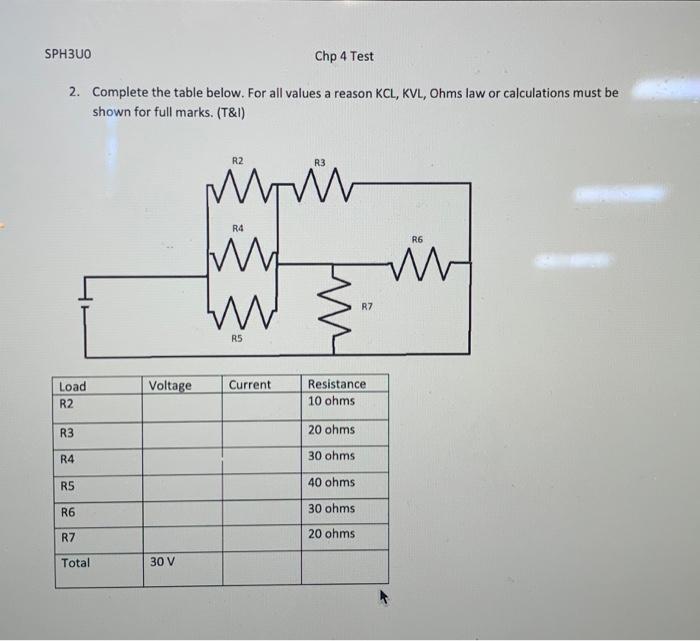

SPH3U0 Chp 4 Test 2. Complete the table below. For all values a reason KCL, KVL, Ohms law or calculations must be shown for full marks. (T&I) R2 R3 W R4 R6 W M R5 Current Load R2 R3 R4 R5 R6 R7 Total Voltage 30 V R7 Resistance 10 ohms 20 ohms 30 ohms 40 ohms. 30 ohms. 20 ohms
SPH3U0 Chp 4 Test 2. Complete the table below. For all values a reason KCL, KVL, Ohms law or calculations must be shown for full marks. (T&I) R2 R3 W R4 R6 W M R5 Current Load R2 R3 R4 R5 R6 R7 Total Voltage 30 V R7 Resistance 10 ohms 20 ohms 30 ohms 40 ohms. 30 ohms. 20 ohms
