Mol Cyclohexane 100 90 80 70 60 50 40 30 20 115 10 110 105 100 Temperature "C 95 Temperature °C 90 85 80 75 0 10 20 30 4

[answerhappygod]

Mol Cyclohexane 100 90 80 70 60 50 40 30 20 115 10 110 105 100 Temperature C 95 Temperature C 90 85 80 75 0 10 20 30 4 1 (27.85 KiB) Viewed 140 times

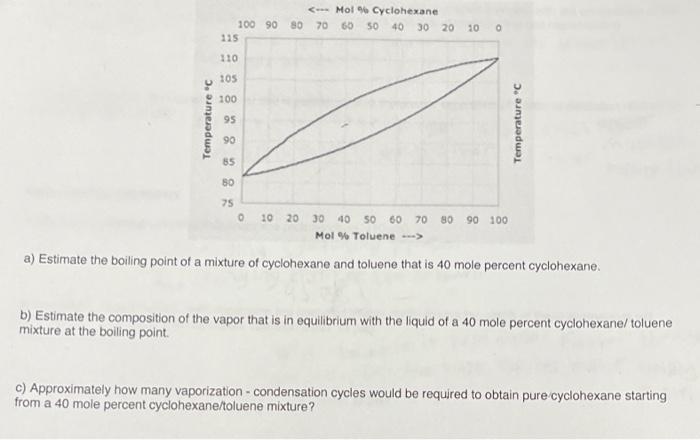

Mol Cyclohexane 100 90 80 70 60 50 40 30 20 115 10 110 105 100 Temperature "C 95 Temperature °C 90 85 80 75 0 10 20 30 40 50 60 70 80 90 100 Mol % Toluene ---> a) Estimate the boiling point of a mixture of cyclohexane and toluene that is 40 mole percent cyclohexane. b) Estimate the composition of the vapor that is in equilibrium with the liquid of a 40 mole percent cyclohexane/ toluene mixture at the boiling point c) Approximately how many vaporization - condensation cycles would be required to obtain pure cyclohexane starting from a 40 mole percent cyclohexane/toluene mixture?
