In the circuit of the following diagram, determine the current in each resistor, if &₁ = 24V, E₂ 12V, R₁ = 280, R₂ = 120

Post by answerhappygod »

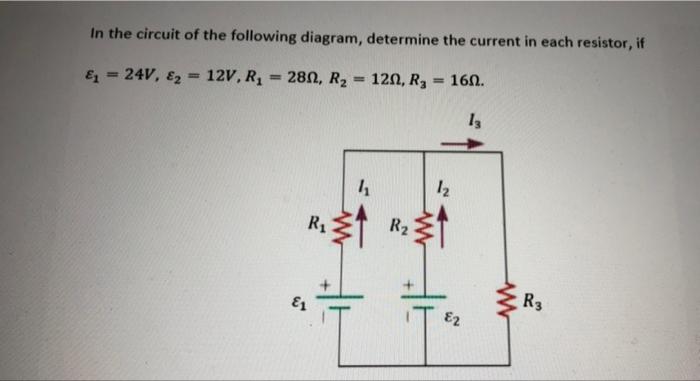

In The Circuit Of The Following Diagram Determine The Current In Each Resistor If 24v E 12v R 280 R 120 1
In The Circuit Of The Following Diagram Determine The Current In Each Resistor If 24v E 12v R 280 R 120 1 (24.74 KiB) Viewed 23 times
In the circuit of the following diagram, determine the current in each resistor, if &₁ = 24V, E₂ 12V, R₁ = 280, R₂ = 120, R₂ = 160. 13 4 E1 R₂ 1₂ 82 R3
