Solve the assignment clearly, total mark 10 Q1: For the loaded beam shown knowing that Ay =1800N and By = 2100N a) Plot

Post by answerhappygod »

Solve The Assignment Clearly Total Mark 10 Q1 For The Loaded Beam Shown Knowing That Ay 1800n And By 2100n A Plot 1
Solve The Assignment Clearly Total Mark 10 Q1 For The Loaded Beam Shown Knowing That Ay 1800n And By 2100n A Plot 1 (103 KiB) Viewed 32 times

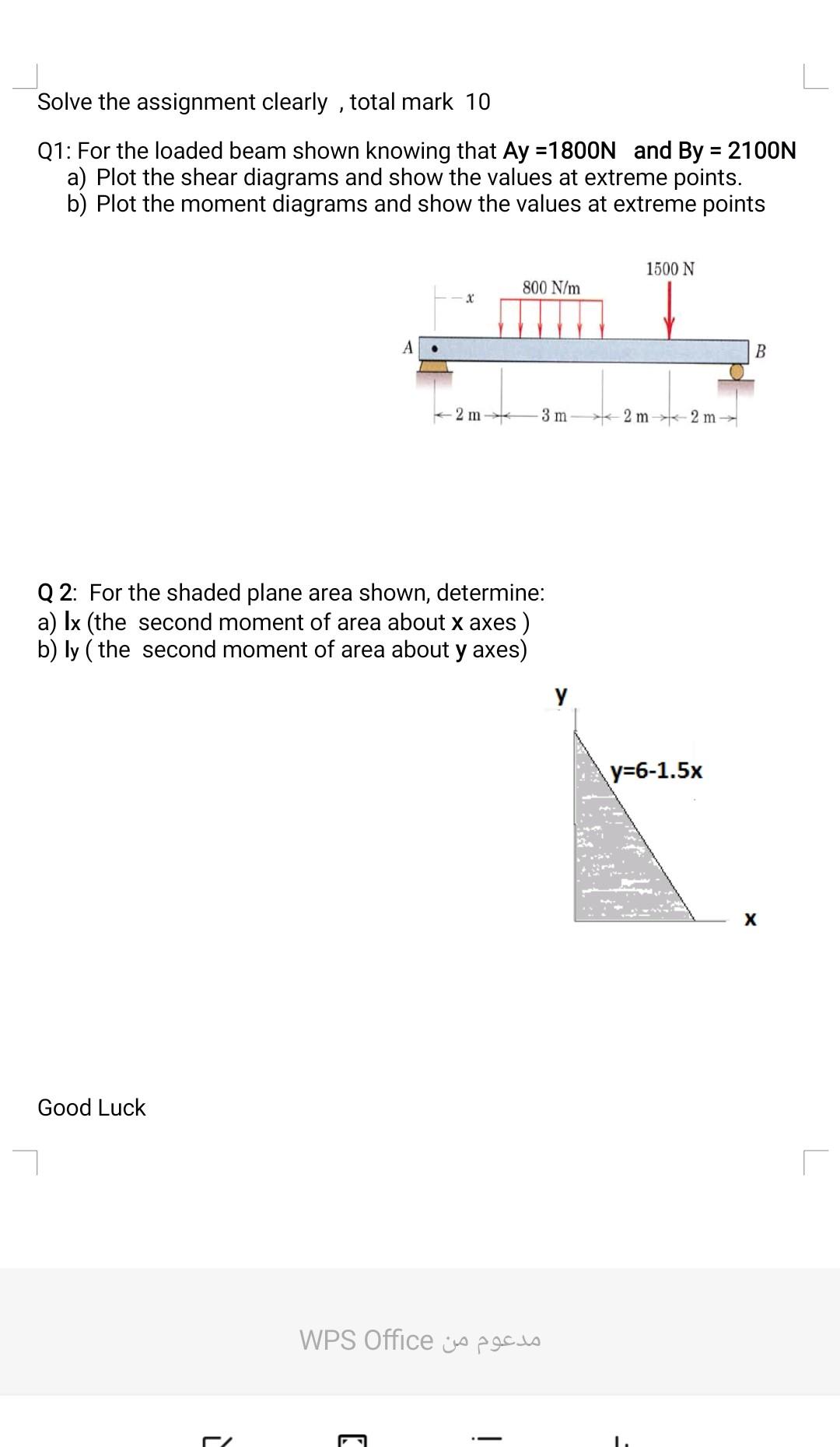

Solve the assignment clearly, total mark 10 Q1: For the loaded beam shown knowing that Ay =1800N and By = 2100N a) Plot the shear diagrams and show the values at extreme points. b) Plot the moment diagrams and show the values at extreme points 1500 N 800 N/m B -2 m- 3 m Q2: For the shaded plane area shown, determine: a) Ix (the second moment of area about x axes) b) ly (the second moment of area about y axes) y Good Luck مدعوم من WPS Office | 2 m2 m y=6-1.5x X
