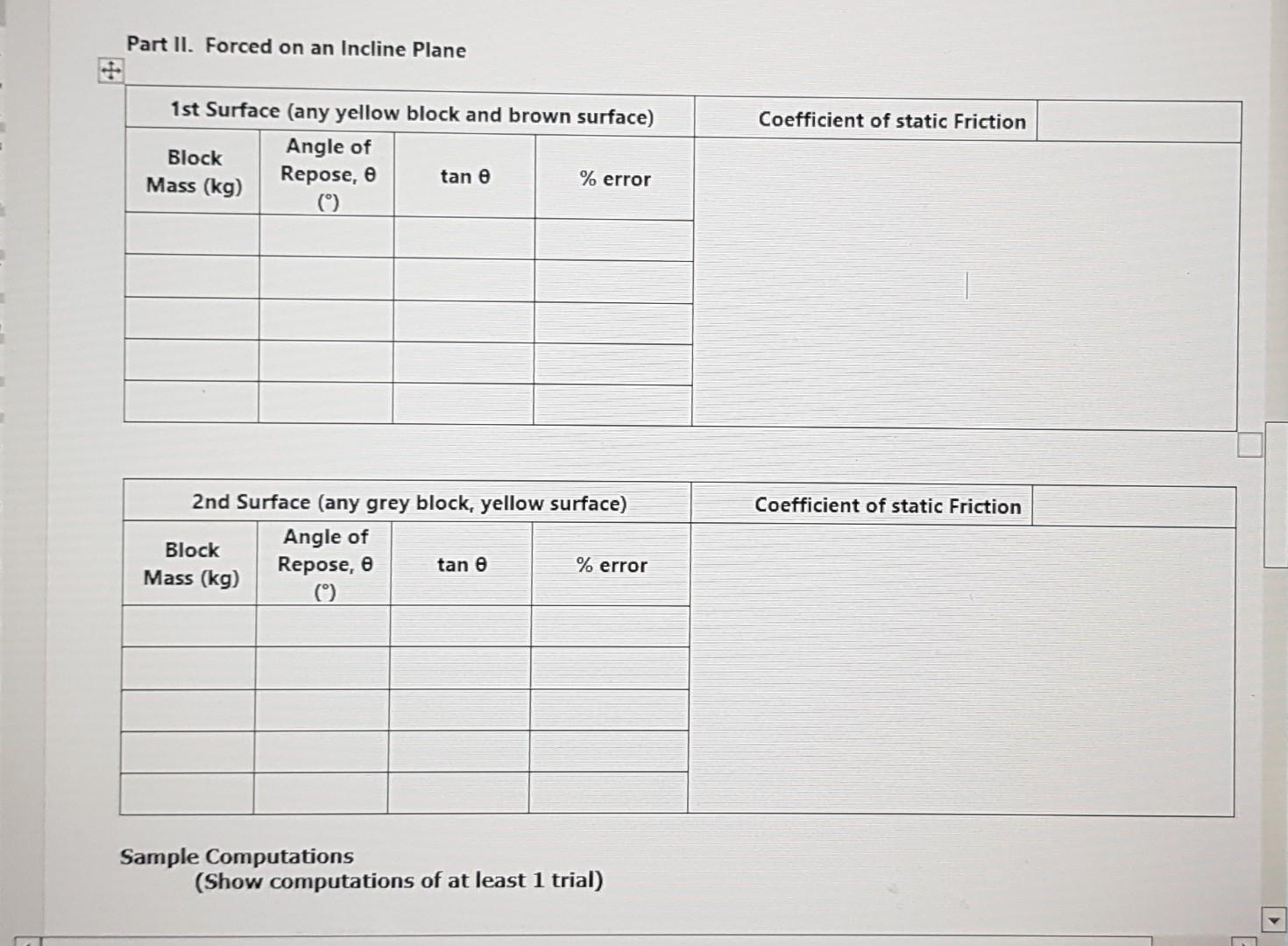

Part II. Forced on an Incline Plane 1st Surface (any yellow block and brown surface) Angle of Block Mass (kg) tan 8 % error Repose, e (9) 2nd Surface (any grey block, yellow surface) Angle of Block tan 8 % error Mass (kg) Repose, 8 () Sample Computations (Show computations of at least 1 trial) Coefficient of static Friction Coefficient of static Friction

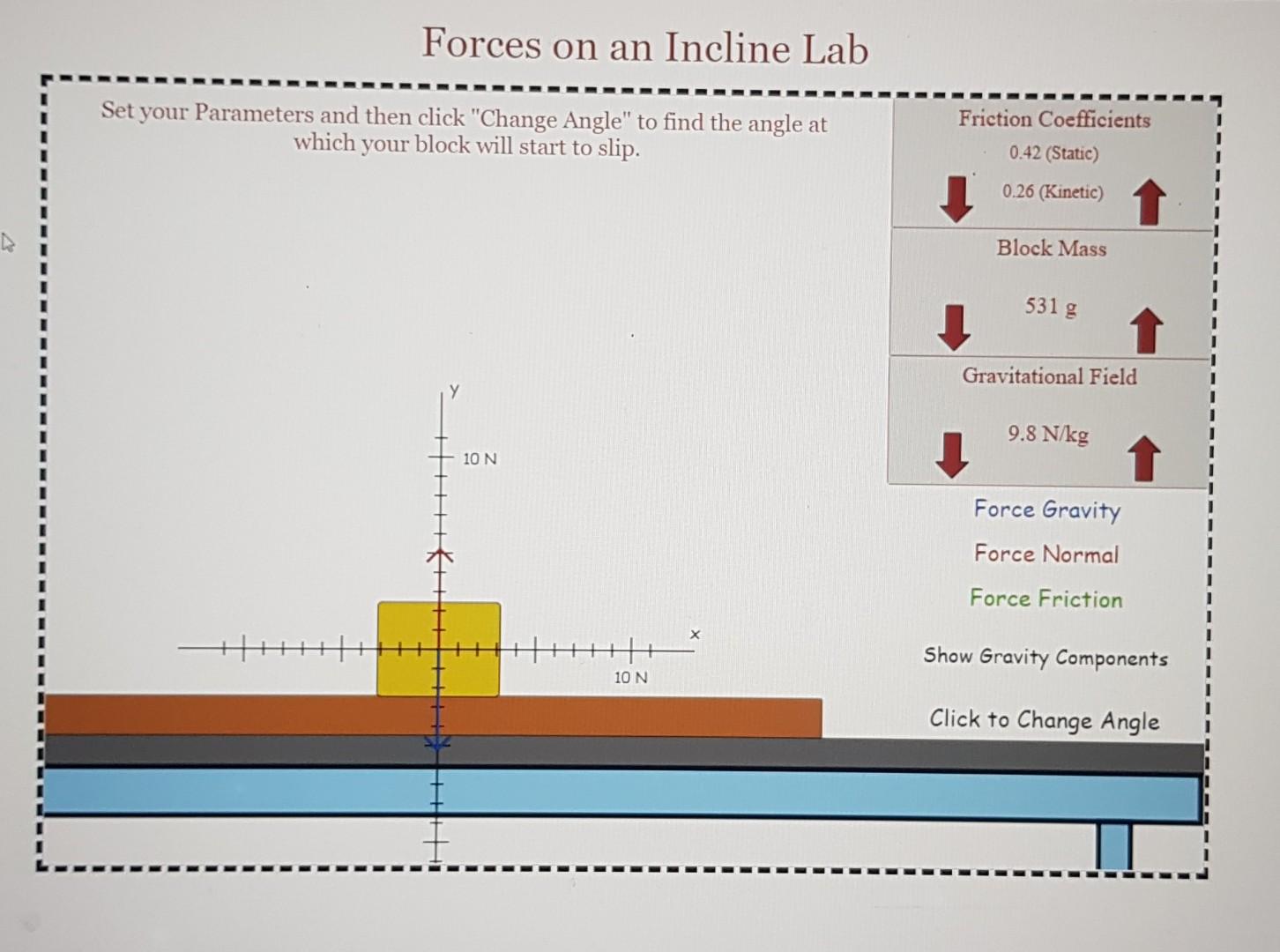

Forces on an Incline Lab Set your Parameters and then click "Change Angle" to find the angle at which your block will start to slip. 10 N 10 N Friction Coefficients 0.42 (Static) 0.26 (Kinetic) Block Mass 531 g Gravitational Field 9.8 N/kg Force Gravity Force Normal Force Friction Show Gravity Components Click to Change Angle IT I I
