Determine the angle between the velocity of C and the velocity of C with respect to B. B 100 mm A WAB 3 rad/s O 32.0 degrees 54.3 degrees 35.7 degrees O 30.0 degrees 30° 80 mm 160 mm C

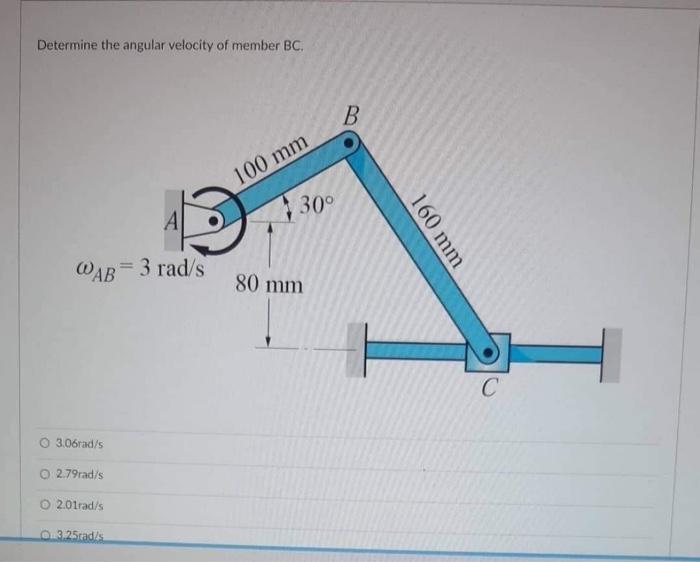

Determine the angular velocity of member BC. 100 mm AP WAB 3 rad/s O 3.06rad/s O 2.79rad/s O 2.01rad/s 3.25rad/s 30° 80 mm B 160 mm C

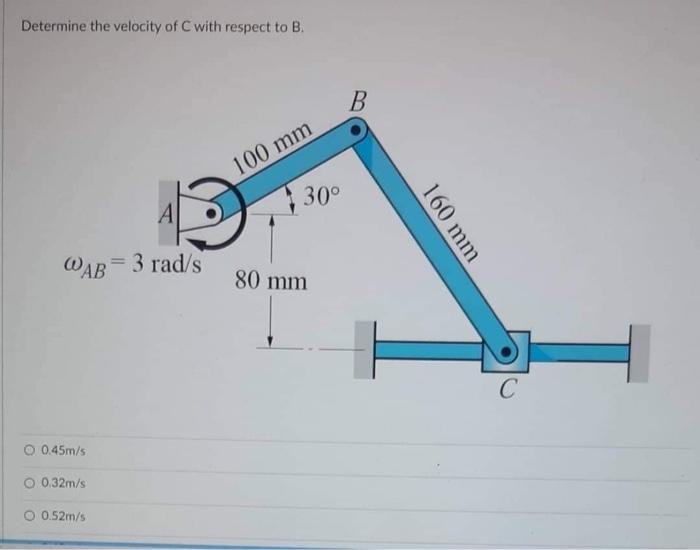

Determine the velocity of C with respect to B. A @AB 3 rad/s 0.45m/s 0.32m/s 0.52m/s 100 mm 30° 80 mm B 160 mm C

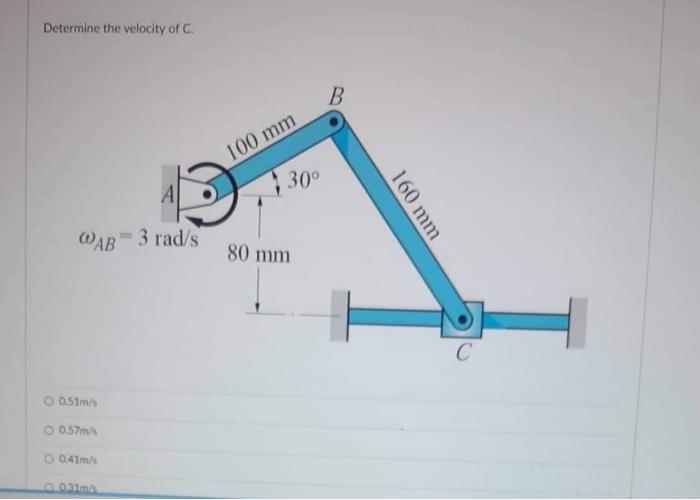

Determine the velocity of C. @AB 3 rad/s O 0.51m/s 0.57m/s O 0:41m/s 0.0.31m/s 100 mm 30° 80 mm B 160 mm C

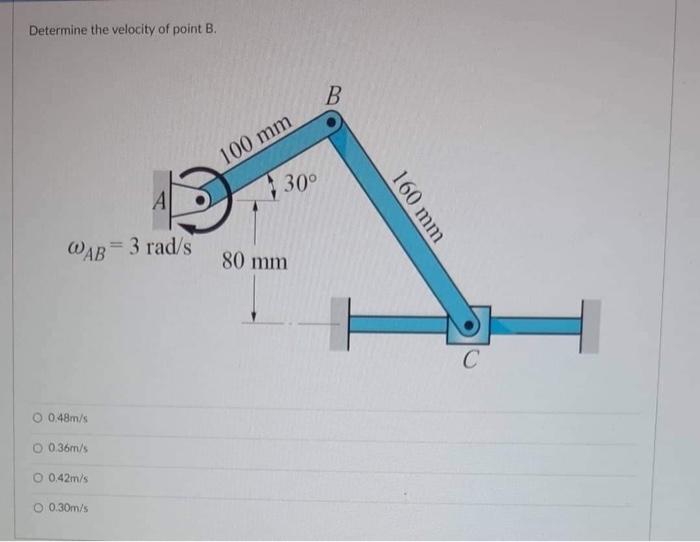

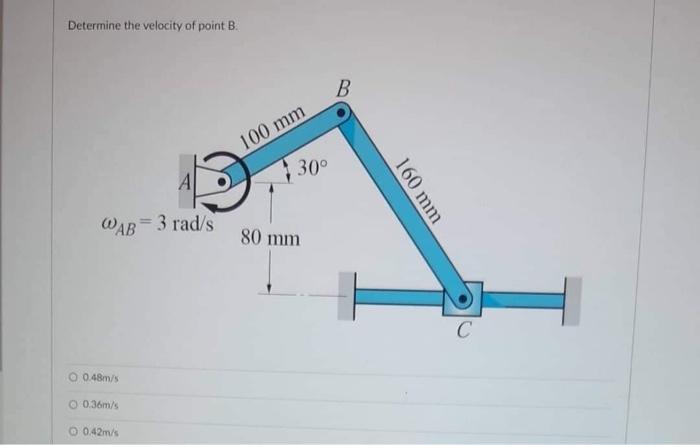

Determine the velocity of point B. A WAB 3 rad/s O 0.48m/s O 0.36m/s O 0.42m/s 100 mm 30° 80 mm B 160 mm C
