Q3- Written response question on Circuits a) What is the magnitude of the electric field at 1.00 m distance from a point

[answerhappygod]

Q3 Written Response Question On Circuits A What Is The Magnitude Of The Electric Field At 1 00 M Distance From A Point 1 (57.57 KiB) Viewed 28 times

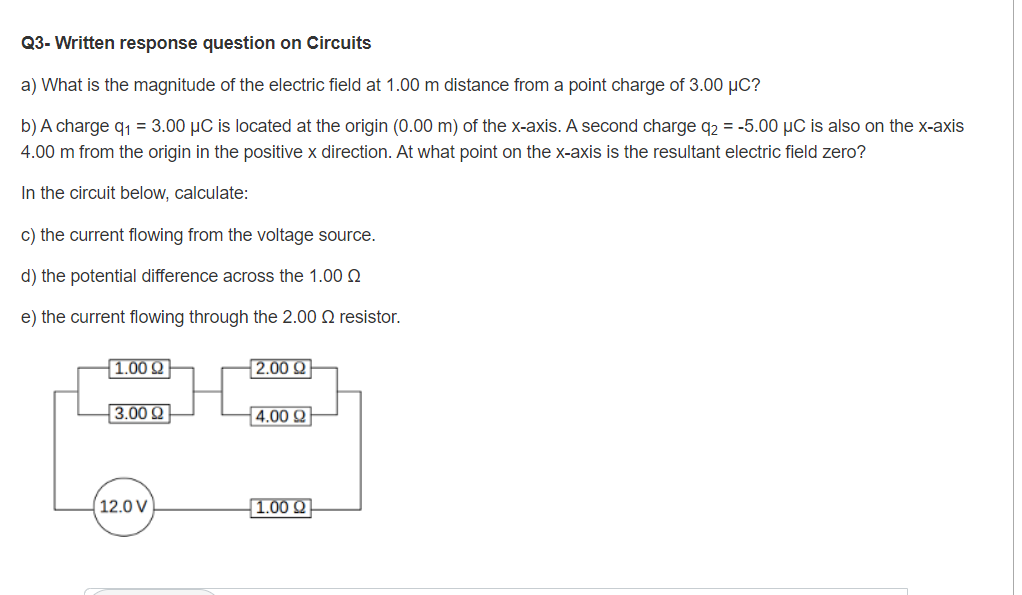

Q3- Written response question on Circuits a) What is the magnitude of the electric field at 1.00 m distance from a point charge of 3.00 μC? b) A charge q₁ = 3.00 µC is located at the origin (0.00 m) of the x-axis. A second charge q2 = -5.00 μC is also on the x-axis 4.00 m from the origin in the positive x direction. At what point on the x-axis is the resultant electric field zero? In the circuit below, calculate: c) the current flowing from the voltage source. d) the potential difference across the 1.000 e) the current flowing through the 2.00 Q resistor. - 1.00 Ω - 2.00 9 - 3.00 Ω - 4.00 9 12.0 V 1.00 22
