An aqueous reactant stream (4 mol A/liter) passes through a mixed flow reactor followed by a plug flow reactor. Find the concentration at the exit of the plug flow
reactor if in the mixed flow reactor C, = 1 mollliter. The reaction is second-order with respect
to A, and the volume of the plug flow unit is three times that of the mixed flow unit.
1. Illustrate the system (refer to figure 6.12 from Levenspiel's Chemical Reaction Engineering)
- Answer All Questions An Aqueous Reactant Stream 4 Mol A Liter Passes Through A Mixed Flow Reactor Followed By A Plug 1 (71.93 KiB) Viewed 21 times
3. Explain/describe all equations used to determine the concentration in the exit
stream of the second reactor.

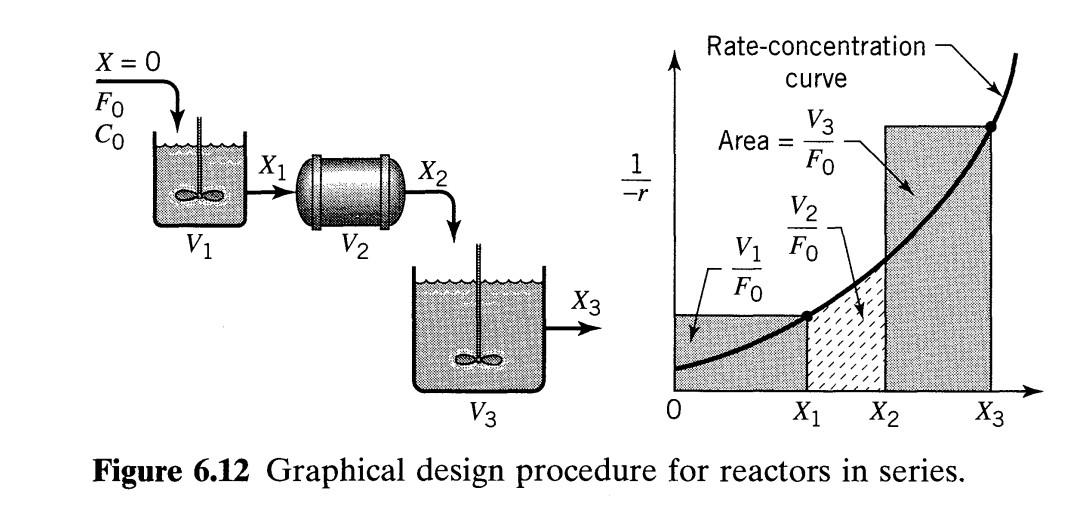

X = 0 Fo Co X₁ X2 -r Rate-concentration curve V3 Area = Fo V2 V₁ Fo Fo V₁ V2 X3 0 V3 X1 X2 X3 Figure 6.12 Graphical design procedure for reactors in series. 6
