A Calculate The Range Of Kc1 Values Which Can Make The Inner Loop Stable B 3 Pts Assuming That Kc1 10 Calculat 1 (21.92 KiB) Viewed 25 times
(a) Calculate the range of Kc1 values which can make the
inner-loop stable.
(b) [3 pts] Assuming that Kc1 = 10, calculate the closed-loop
transfer functions from P to U and D to U. Based on the result,
draw an equivalent block diagram without the inner-loop.
(c) [3 pts] Using the block diagram obtained in (b), calculate
the range of Kc2 values which can make the overall closed-loop
system stable.

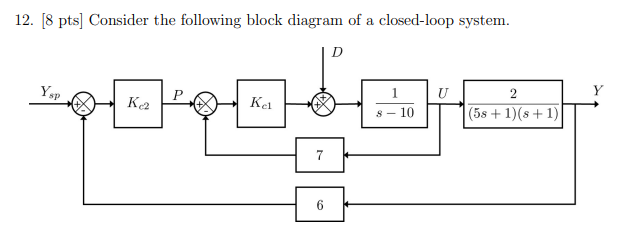

12. [8 pts] Consider the following block diagram of a closed-loop system. Ysp 2 Kel အစိုးရဖြစ်မယ်။ 10 (5s + 1)(8 + 1) 7 6 Y
