UNISIM
UNISIM

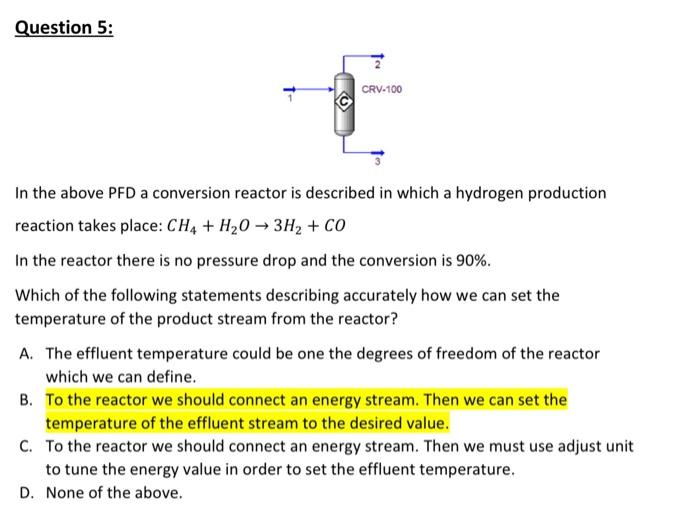

Question 5: CRV-100 In the above PFD a conversion reactor is described in which a hydrogen production reaction takes place: CH4 + H₂O → 3H₂ + CO In the reactor there is no pressure drop and the conversion is 90%. Which of the following statements describing accurately how we can set the temperature of the product stream from the reactor? A. The effluent temperature could be one the degrees of freedom of the reactor which we can define. B. To the reactor we should connect an energy stream. Then we can set the temperature of the effluent stream to the desired value. C. To the reactor we should connect an energy stream. Then we must use adjust unit to tune the energy value in order to set the effluent temperature. D. None of the above.
Question 5: CRV-100 In the above PFD a conversion reactor is described in which a hydrogen production reaction takes place: CH4 + H₂O → 3H₂ + CO In the reactor there is no pressure drop and the conversion is 90%. Which of the following statements describing accurately how we can set the temperature of the product stream from the reactor? A. The effluent temperature could be one the degrees of freedom of the reactor which we can define. B. To the reactor we should connect an energy stream. Then we can set the temperature of the effluent stream to the desired value. C. To the reactor we should connect an energy stream. Then we must use adjust unit to tune the energy value in order to set the effluent temperature. D. None of the above.
