1. There is a steam compression refrigeration cycle using R-134a as working fluid. Pressure of the evaporator and conden

[answerhappygod]

1 There Is A Steam Compression Refrigeration Cycle Using R 134a As Working Fluid Pressure Of The Evaporator And Conden 1 (738.71 KiB) Viewed 28 times

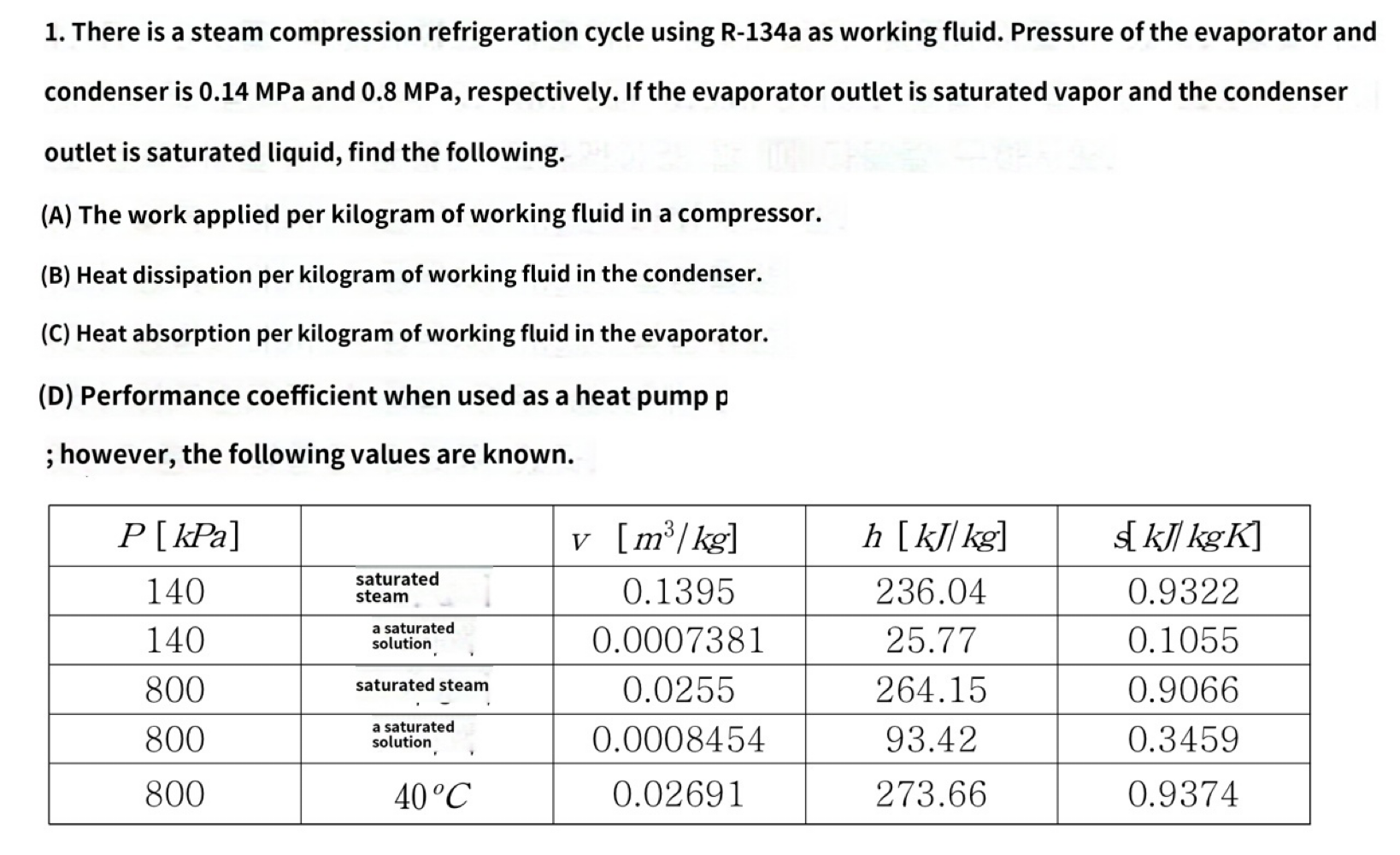

1. There is a steam compression refrigeration cycle using R-134a as working fluid. Pressure of the evaporator and condenser is 0.14 MPa and 0.8 MPa, respectively. If the evaporator outlet is saturated vapor and the condenser outlet is saturated liquid, find the following. (A) The work applied per kilogram of working fluid in a compressor. (B) Heat dissipation per kilogram of working fluid in the condenser. (C) Heat absorption per kilogram of working fluid in the evaporator. (D) Pe ormance coefficient when used as a heat pump p ; however, the following values are known. P[kPa] v [m³/kg] h[kJ/kg] s[kJ/kgK] 140 saturated steam 0.1395 236.04 0.9322 140 0.0007381 25.77 0.1055 800 0.0255 264.15 0.9066 800 0.0008454 93.42 0.3459 800 0.02691 273.66 0.9374 a saturated solution saturated steam a saturated solution 40 °C
