(c) A heat recovery system has the process stream data as listed in Table 1. (i) Conduct problem table analysis to look

[answerhappygod]

C A Heat Recovery System Has The Process Stream Data As Listed In Table 1 I Conduct Problem Table Analysis To Look 1 (84.72 KiB) Viewed 35 times

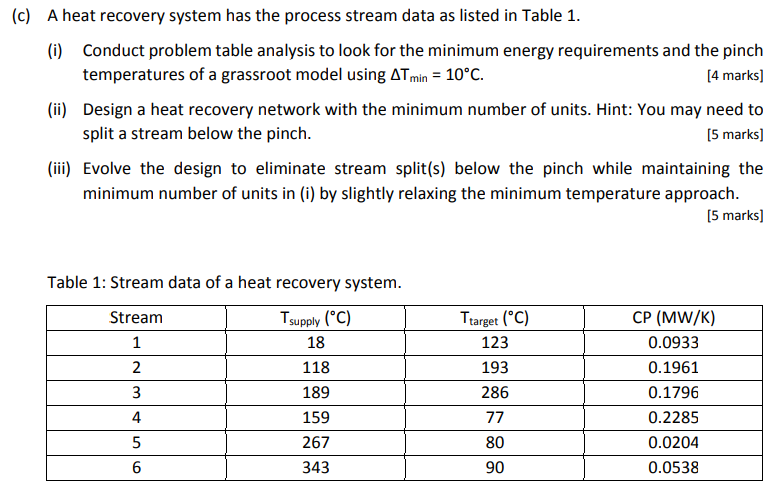

(c) A heat recovery system has the process stream data as listed in Table 1. (i) Conduct problem table analysis to look for the minimum energy requirements and the pinch temperatures of a grassroot model using ATmin = 10°C. [4 marks] (ii) Design a heat recovery network with the minimum number of units. Hint: You may need to split a stream below the pinch. [5 marks] (iii) Evolve the design to eliminate stream split(s) below the pinch while maintaining the minimum number of units in (i) by slightly relaxing the minimum temperature approach. [5 marks] Table 1: Stream data of a heat recovery system. Stream Tsupply (°C) Ttarget (°C) CP (MW/K) 1 18 123 0.0933 2 118 193 0.1961 3 189 286 0.1796 4 159 77 0.2285 5 267 80 0.0204 6 343 90 0.0538
