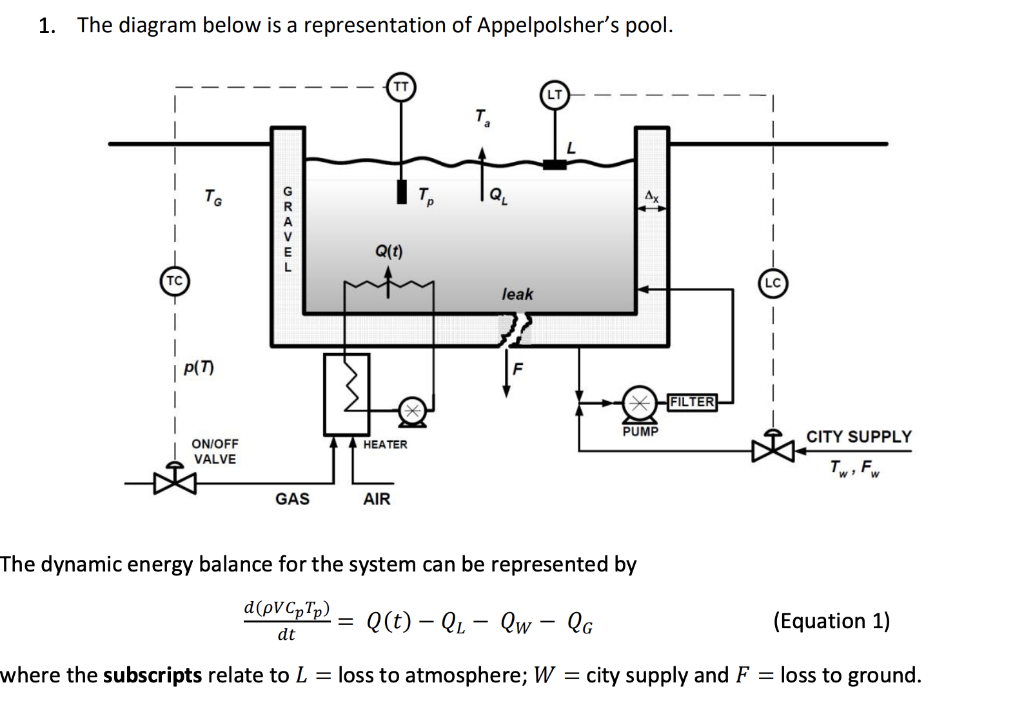

1. The diagram below is a representation of Appelpolsher's pool. LT Tp GRAVE- QL Q(t) P(7) PUMP HEATER ON/OFF VALVE GAS AIR The dynamic energy balance for the system can be represented by d(pVCpTp) = Q(t)- QL Qw - QG - (Equation 1) dt where the subscripts relate to L = loss to atmosphere; W = city supply and F = loss to ground. leak FILTER (LC CITY SUPPLY Tw, Fw
b) Use Equation (1) to find the steady state relationship between Q(t) and Tp, Ta, TG, Fw and Tw. Define any additional terms that you need and state any assumptions made. (2 marks)
