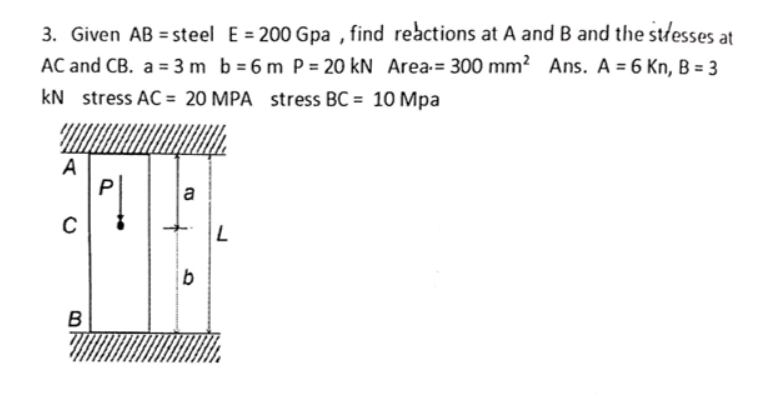

3. Given AB = steel E = 200 Gpa, find reactions at A and B and the stresses at AC and CB. a = 3 m b= 6 m P = 20 kN Area-
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
3. Given AB = steel E = 200 Gpa, find reactions at A and B and the stresses at AC and CB. a = 3 m b= 6 m P = 20 kN Area-
3. Given AB = steel E = 200 Gpa, find reactions at A and B and the stresses at AC and CB. a = 3 m b= 6 m P = 20 kN Area-= 300 mm2 Ans. A = 6 Kn, B = 3 kN stress AC = 20 MPA stress BC = 10 Mpa A P a C B b L
