For a FOPDT (first order plus dead time) model of the CV (control variable) response curve as the following figure shows

[answerhappygod]

For A Fopdt First Order Plus Dead Time Model Of The Cv Control Variable Response Curve As The Following Figure Shows 1 (190.81 KiB) Viewed 23 times

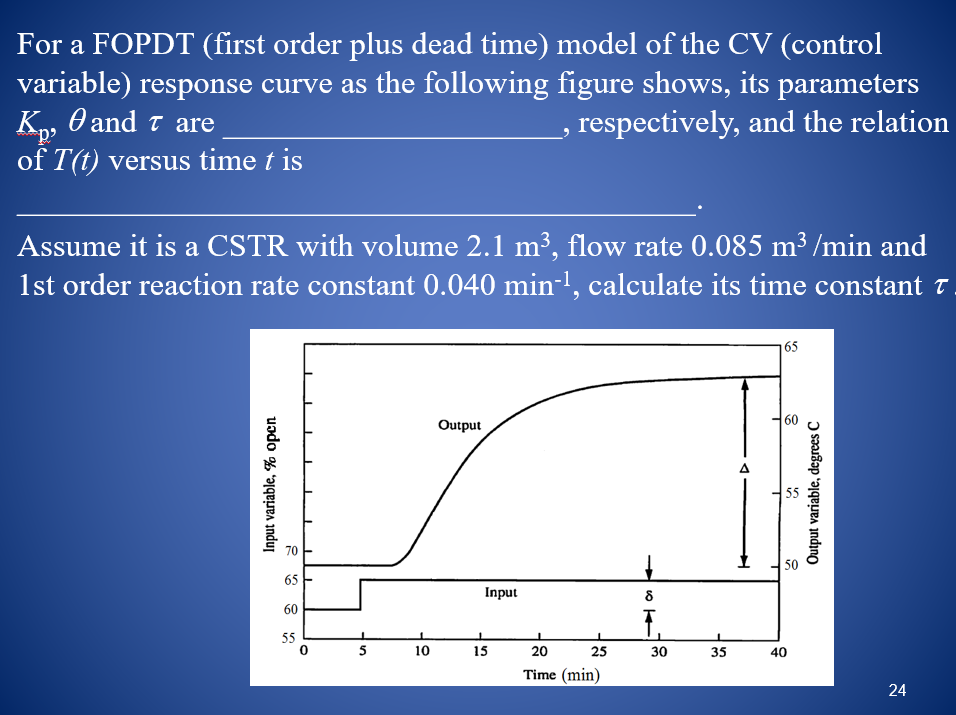

For a FOPDT (first order plus dead time) model of the CV (control variable) response curve as the following figure shows, its parameters K₂, and 7 are , respectively, and the relation of T(t) versus time t is Assume it is a CSTR with volume 2.1 m³, flow rate 0.085 m²³ /min and 1st order reaction rate constant 0.040 min-¹, calculate its time constant 7. 165 Output Input variable, % open 70 65 60 55 0 50 10 Input 15 20 25 Time (min) 2014 8 1. 30 35 55 Output variable, degrees C 50 40 24
