5.2 kN-m 20 KN 2.5 in. 400 mm 7.5KN Fig. 6a Fig. 7 7. The thin rectangular plate shown in Fig. 7 is uniformly deformed s

[answerhappygod]

5 2 Kn M 20 Kn 2 5 In 400 Mm 7 5kn Fig 6a Fig 7 7 The Thin Rectangular Plate Shown In Fig 7 Is Uniformly Deformed S 1 (18.11 KiB) Viewed 14 times

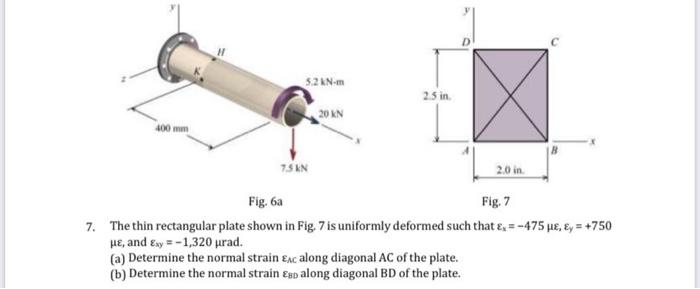

5.2 kN-m 20 KN 2.5 in. 400 mm 7.5KN Fig. 6a Fig. 7 7. The thin rectangular plate shown in Fig. 7 is uniformly deformed such that &=-475 μE, Ey=+750 μe, and Exy = -1,320 μrad. (a) Determine the normal strain Exc along diagonal AC of the plate. (b) Determine the normal strain EBD along diagonal BD of the plate. 2.0 in.
