5. A load of 7,100 N acts on the machine part shown in Fig. 5a. The machine part has a uniform thickness of 15 mm (i.e.,

[answerhappygod]

5 A Load Of 7 100 N Acts On The Machine Part Shown In Fig 5a The Machine Part Has A Uniform Thickness Of 15 Mm I E 1 (18.93 KiB) Viewed 27 times

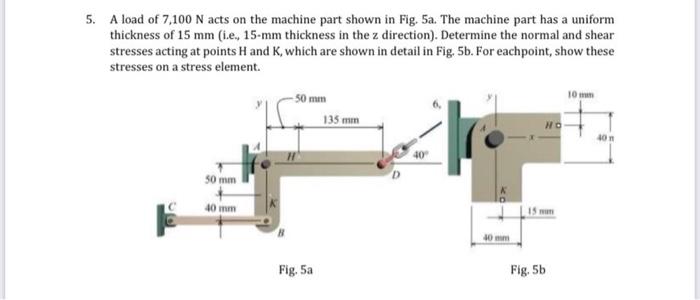

5. A load of 7,100 N acts on the machine part shown in Fig. 5a. The machine part has a uniform thickness of 15 mm (i.e., 15-mm thickness in the z direction). Determine the normal and shear stresses acting at points H and K, which are shown in detail in Fig. 5b. For eachpoint, show these stresses on a stress element. 10 mm -50 mm 135 mm 50 mm 40 mm Fig. 5a 40 mm Fig. 5b NO 40 m
