2. A solid compound shaft consists of segment (1), which has a diameter of 40 mm, and segment (2), which has a diameter
-
answerhappygod
- Site Admin
- Posts: 899603
- Joined: Mon Aug 02, 2021 8:13 am
2. A solid compound shaft consists of segment (1), which has a diameter of 40 mm, and segment (2), which has a diameter

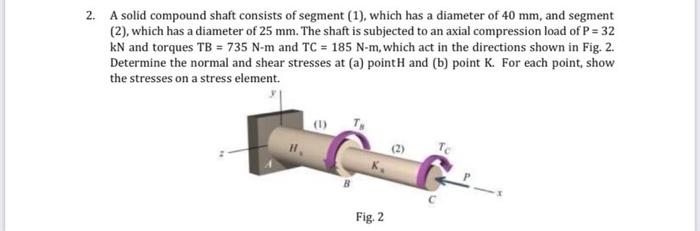

2. A solid compound shaft consists of segment (1), which has a diameter of 40 mm, and segment (2), which has a diameter of 25 mm. The shaft is subjected to an axial compression load of P = 32 kN and torques TB = 735 N-m and TC = 185 N-m, which act in the directions shown in Fig. 2. Determine the normal and shear stresses at (a) point H and (b) point K. For each point, show the stresses on a stress element. Fig. 2
