Please determine the maximum distributed loading that can be applied to the beam so that the brace CD does not fail. The

Post by answerhappygod »

Please Determine The Maximum Distributed Loading That Can Be Applied To The Beam So That The Brace Cd Does Not Fail The 1
Please Determine The Maximum Distributed Loading That Can Be Applied To The Beam So That The Brace Cd Does Not Fail The 1 (27.37 KiB) Viewed 22 times

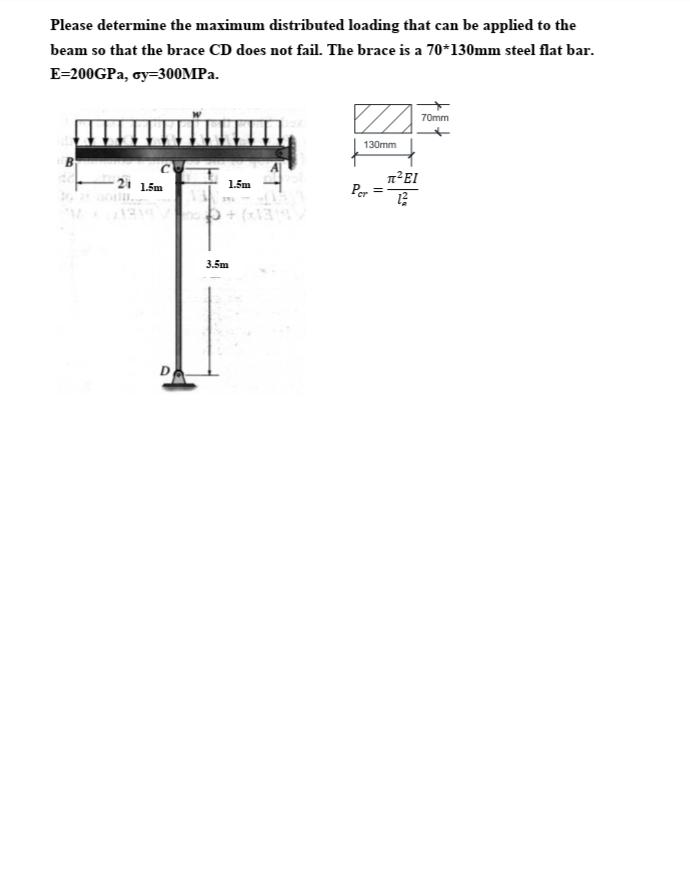

Please determine the maximum distributed loading that can be applied to the beam so that the brace CD does not fail. The brace is a 70*130mm steel flat bar. E-200GPa, Gy=300MPa. Z 70mm 130mm 21 1.5m Per = 12 1.5m +(x1319 3.5m πΖΕΙ
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
