A compressive force of 45 kN acts parallel to the longitudinal axis of the l-section as shown in Figure 3 below and in t

Post by answerhappygod »

A Compressive Force Of 45 Kn Acts Parallel To The Longitudinal Axis Of The L Section As Shown In Figure 3 Below And In T 1
A Compressive Force Of 45 Kn Acts Parallel To The Longitudinal Axis Of The L Section As Shown In Figure 3 Below And In T 1 (68.29 KiB) Viewed 45 times
may I please get assisted with this question

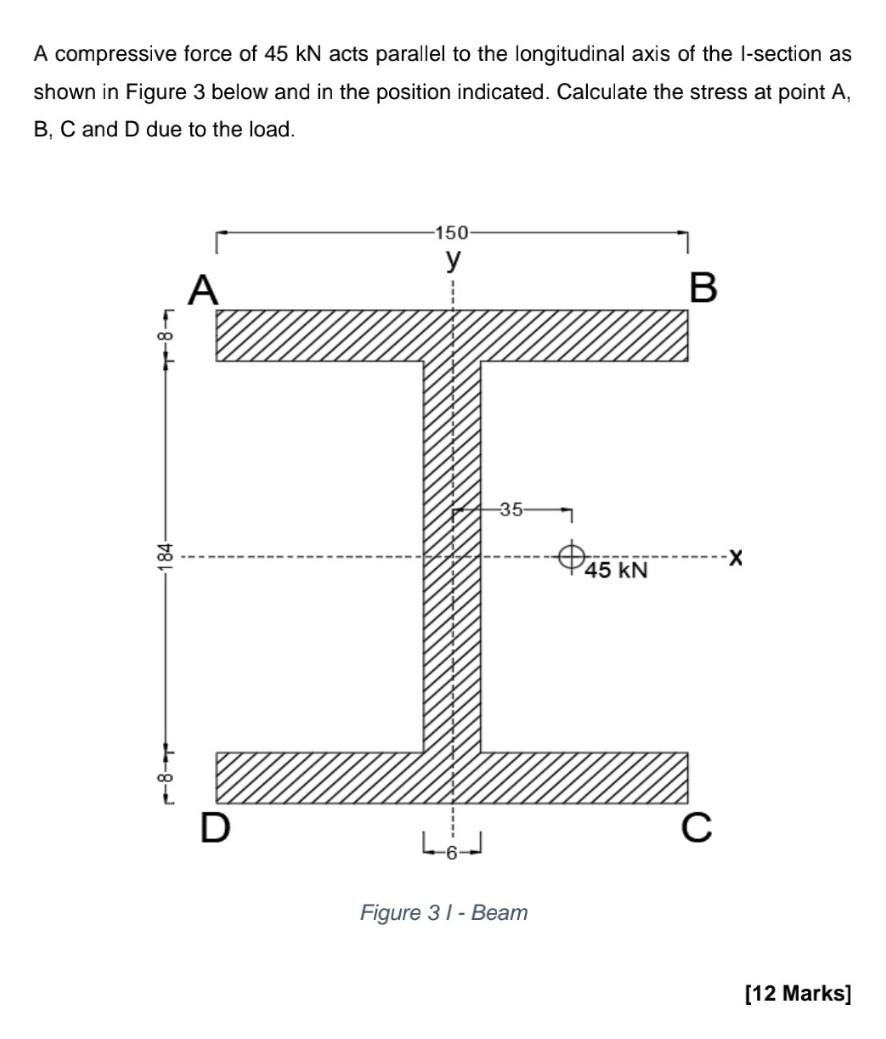

A compressive force of 45 kN acts parallel to the longitudinal axis of the l-section as shown in Figure 3 below and in the position indicated. Calculate the stress at point A, B, C and D due to the load. -150- y A B D -35- J Figure 31 - Beam 45 KN с -X [12 Marks]
