may I please get assisted with this question

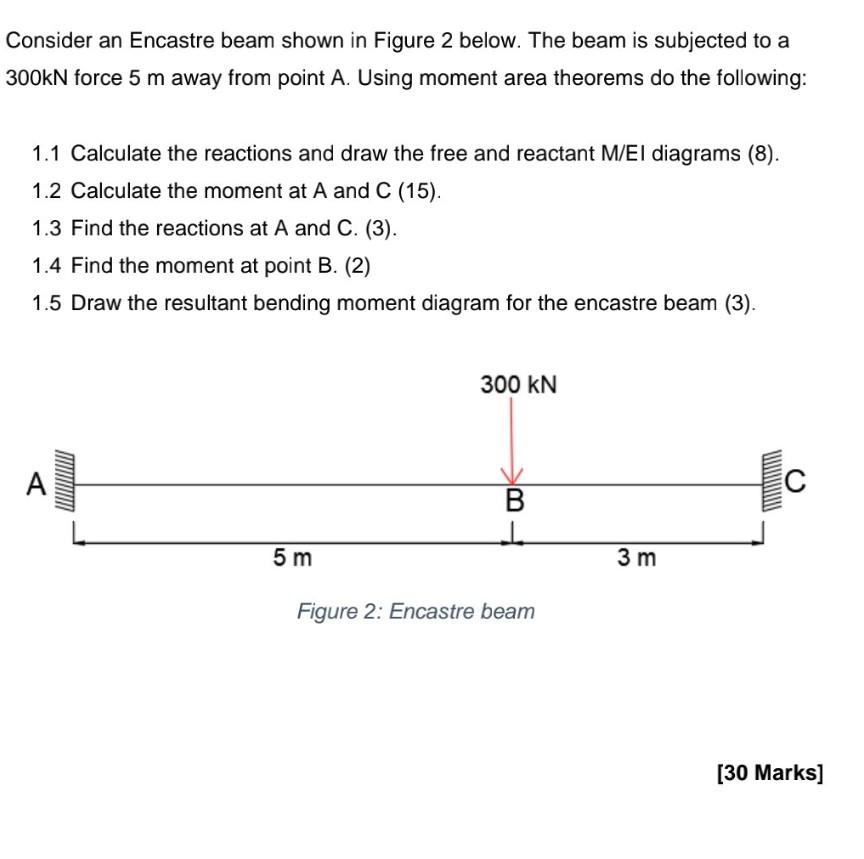

Consider an Encastre beam shown in Figure 2 below. The beam is subjected to a 300kN force 5 m away from point A. Using moment area theorems do the following: 1.1 Calculate the reactions and draw the free and reactant M/El diagrams (8). 1.2 Calculate the moment at A and C (15). 1.3 Find the reactions at A and C. (3). 1.4 Find the moment at point B. (2) 1.5 Draw the resultant bending moment diagram for the encastre beam (3). 300 KN A C B 5m Figure 2: Encastre beam [30 Marks] 3 m
