Score 5. For the eccentrically loaded bolted connection shown, determine the maximum allowable load that can be supporte

Post by answerhappygod »

Score 5 For The Eccentrically Loaded Bolted Connection Shown Determine The Maximum Allowable Load That Can Be Supporte 1
Score 5 For The Eccentrically Loaded Bolted Connection Shown Determine The Maximum Allowable Load That Can Be Supporte 1 (194.37 KiB) Viewed 35 times

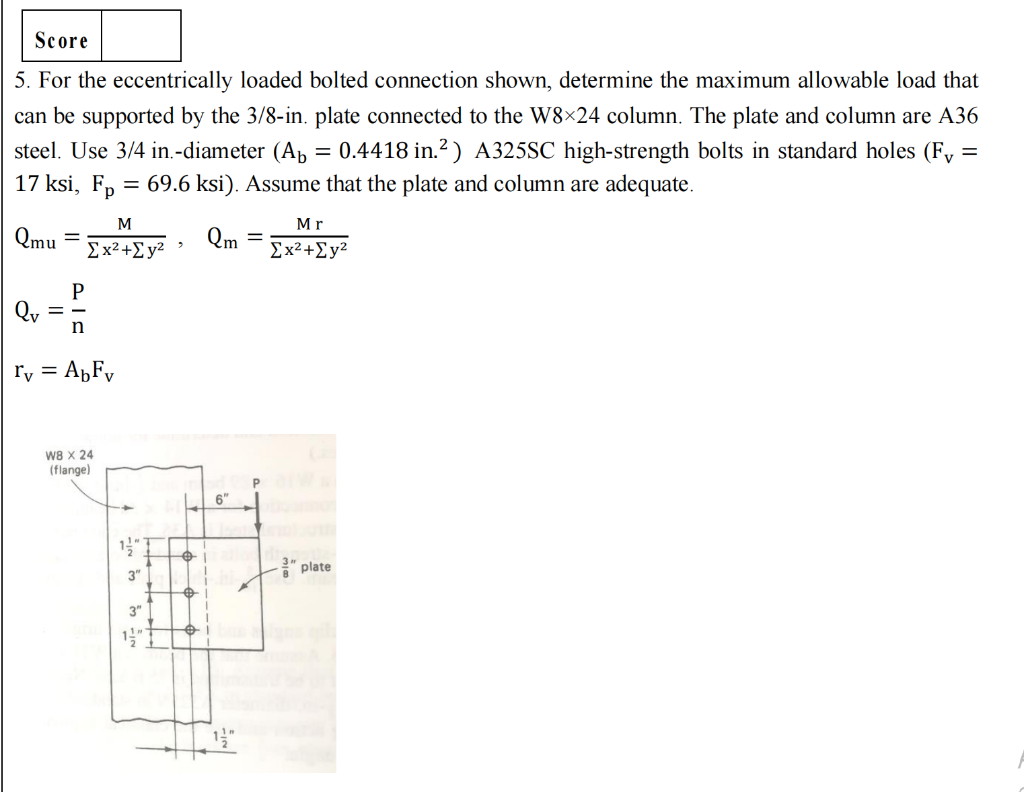

Score 5. For the eccentrically loaded bolted connection shown, determine the maximum allowable load that can be supported by the 3/8-in. plate connected to the W8x24 column. The plate and column are A36 steel. Use 3/4 in.-diameter (A₁ = 0.4418 in.²) A325SC high-strength bolts in standard holes (F₁ = 17 ksi, Fp = 69.6 ksi). Assume that the plate and column are adequate. M Qmu = Qm = Mr 2x2+2y2 3 Σx2+2y2 P Qv == n rv = AbFv W8 X 24 (flange) 1/2" 3" 3" € € 6" E IM plate
