Score 2. Find the tensile capacity P for the double-shear butt connection shown. Bolts are A325SC 3/4 in.-diameter (A₁ =

[answerhappygod]

Score 2 Find The Tensile Capacity P For The Double Shear Butt Connection Shown Bolts Are A325sc 3 4 In Diameter A 1 (265.52 KiB) Viewed 29 times

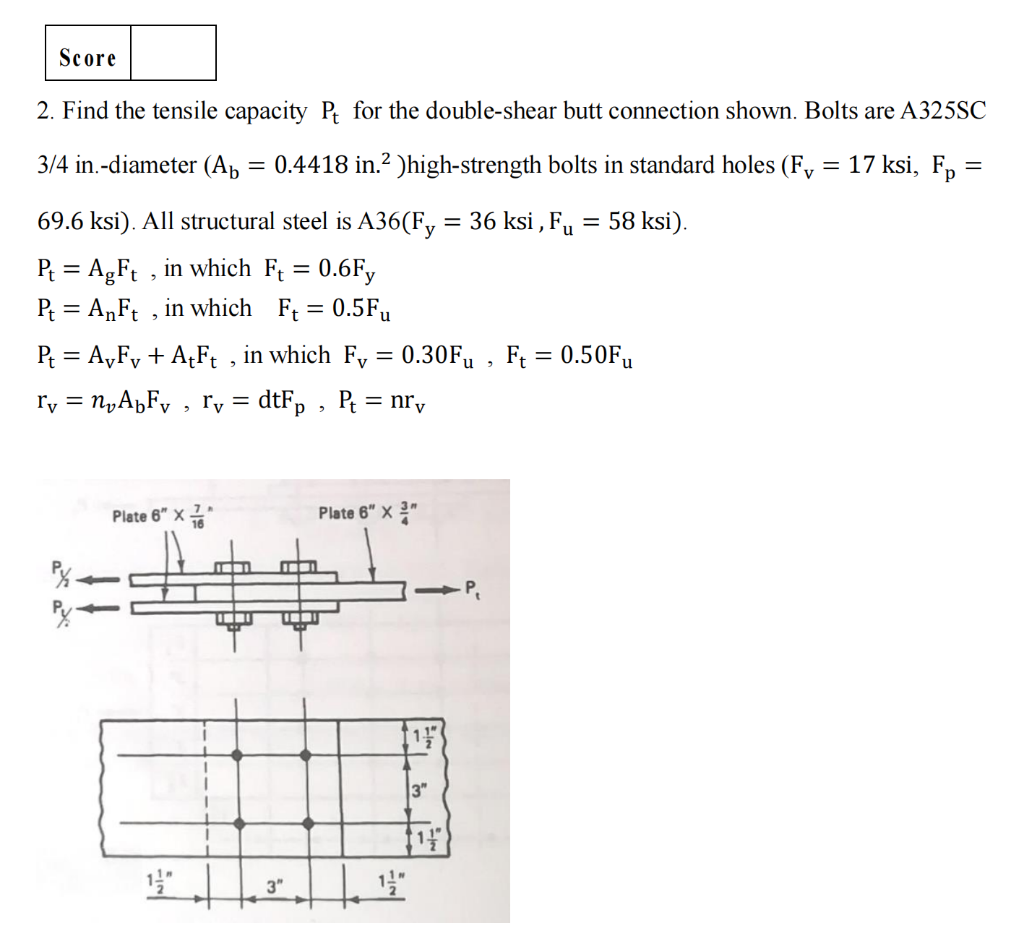

Score 2. Find the tensile capacity P for the double-shear butt connection shown. Bolts are A325SC 3/4 in.-diameter (A₁ = 0.4418 in.² )high-strength bolts in standard holes (F, = 17 ksi, Fp = 69.6 ksi). All structural steel is A36(Fy = 36 ksi, Fu = 58 ksi). P₁ = Ag Ft, in which Ft = 0.6Fy Pt = AnFt, in which F₁ = 0.5Fu Pt = AvFv + AtFt, in which F₁ = 0.30F₁, Ft = 0.50Fu rv = №vApFv, rv = dtFp, Pt = nrv Plate 6" X Plate 6" x 2" X [1 P%. 1/2″ T 3" 1-1/2" 3"
