Globe x 2:05 PM Act_10 Activity#10 Calculate the ultimate axial load capacity of a round spiral column having diameter o

[answerhappygod]

Globe X 2 05 Pm Act 10 Activity 10 Calculate The Ultimate Axial Load Capacity Of A Round Spiral Column Having Diameter O 1 (25.4 KiB) Viewed 31 times

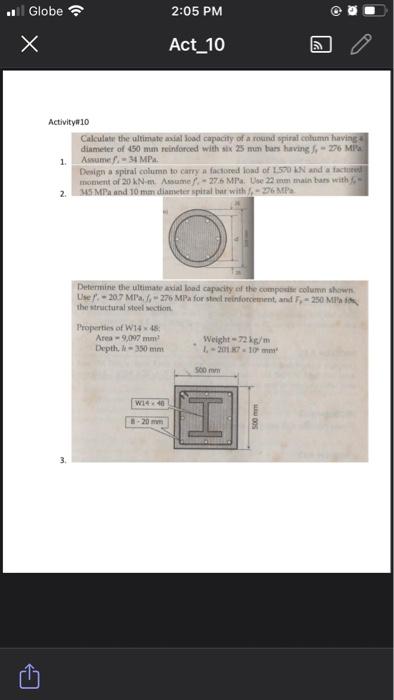

Globe x 2:05 PM Act_10 Activity#10 Calculate the ultimate axial load capacity of a round spiral column having diameter of 450 mm reinforced with six 25 mun bars having f, -276 MPa Assumef-34 MPa. 1. Design a spiral column to carry a factored load of 1570 KN and a factured moment of 20 kN-m. Assumef-27.6 MPa. Use 22 mm main bars with - 345 MPa and 10 mm diameter spital bar with 276 MPa 2. Determine the ultimate axial load capacity of the composite column shown Use f.-20.7 MPa. 1,276 MPa for steel reinforcement, and F-250 M the structural steel section. Properties of W14-48 Area -9,097 mm Depth, -350 mm Weight-72 kg/m 1-20187-10 mm 500 mm W14x40 8-20 mm H
