Q12) A rectangular reducing bend of uniform width of Imeter across inlet and outlets is illustrated in the following Fig

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

Q12) A rectangular reducing bend of uniform width of Imeter across inlet and outlets is illustrated in the following Fig

Post by answerhappygod »

Q12 A Rectangular Reducing Bend Of Uniform Width Of Imeter Across Inlet And Outlets Is Illustrated In The Following Fig 1
Q12 A Rectangular Reducing Bend Of Uniform Width Of Imeter Across Inlet And Outlets Is Illustrated In The Following Fig 1 (14.85 KiB) Viewed 21 times

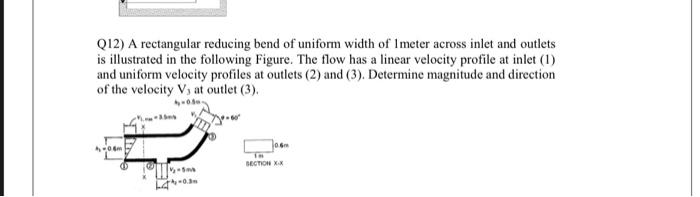

Q12) A rectangular reducing bend of uniform width of Imeter across inlet and outlets is illustrated in the following Figure. The flow has a linear velocity profile at inlet (1) and uniform velocity profiles at outlets (2) and (3). Determine magnitude and direction of the velocity V, at outlet (3). im 0.6m In 4-06m SECTION XX - 244-030
