From the results of a sieve analysis, shown below,
determine:
(a) the percent finer than each sieve (prepare table) and plot a
grain-size distribution curve
(b) D10, D30, D60 from
the grain-size distribution curve,
(c) the uniformity
coefficient, Cu, and (d) the
coefficient of gradation, Cc.
From The Results Of A Sieve Analysis Shown Below Determine A The Percent Finer Than Each Sieve Prepare Table And 1 (25.2 KiB) Viewed 38 times

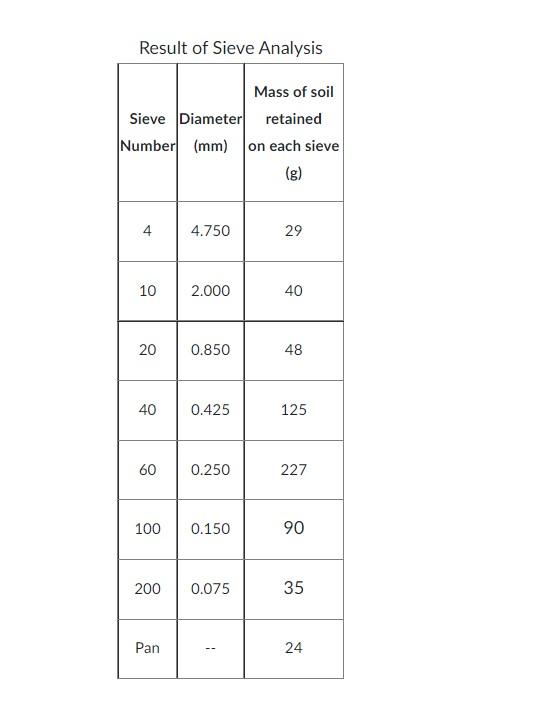

Result of Sieve Analysis Mass of soil Sieve Diameter retained Number (mm) on each sieve (g) 4 4.750 29 10 2.000 40 20 0.850 48 40 0.425 125 60 0.250 227 100 0.150 90 200 0.075 35 Pan 24
