solve this for me please?

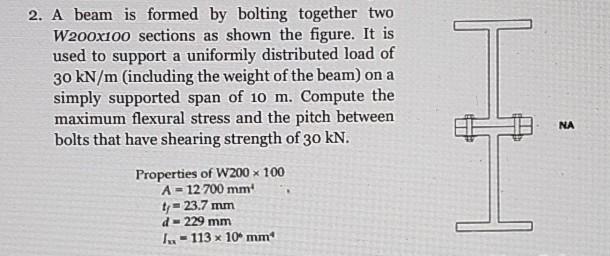

2. A beam is formed by bolting together two W200x100 sections as shown the figure. It is used to support a uniformly distributed load of 30 kN/m (including the weight of the beam) on a simply supported span of 10 m. Compute the maximum flexural stress and the pitch between bolts that have shearing strength of 30 kN. Properties of W200 × 100 A-12 700 mm ty= 23.7 mm d=229 mm I-113 x 10 mm¹ NA
