b) The truss shown in the figure below is supported by a pin at A and a roller at D. 1. The external reaction forces at

Post by answerhappygod »

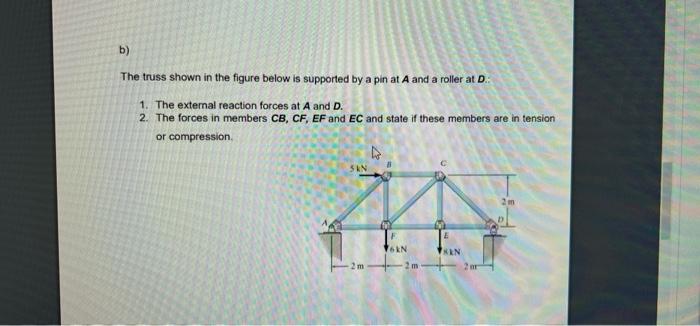

B The Truss Shown In The Figure Below Is Supported By A Pin At A And A Roller At D 1 The External Reaction Forces At 1
B The Truss Shown In The Figure Below Is Supported By A Pin At A And A Roller At D 1 The External Reaction Forces At 1 (33.15 KiB) Viewed 28 times
b) The truss shown in the figure below is supported by a pin at A and a roller at D. 1. The external reaction forces at A and D. 2. The forces in members CB, CF, EF and EC and state if these members are in tension or compression. 2m AD 76kN SEN -2m 2m
