A wedge assembly, composed of wedges X and Y, is designed to lift crate W whose weight is 1936 N, as shown in the figure

Post by answerhappygod »

A Wedge Assembly Composed Of Wedges X And Y Is Designed To Lift Crate W Whose Weight Is 1936 N As Shown In The Figure 1
A Wedge Assembly Composed Of Wedges X And Y Is Designed To Lift Crate W Whose Weight Is 1936 N As Shown In The Figure 1 (31.64 KiB) Viewed 32 times

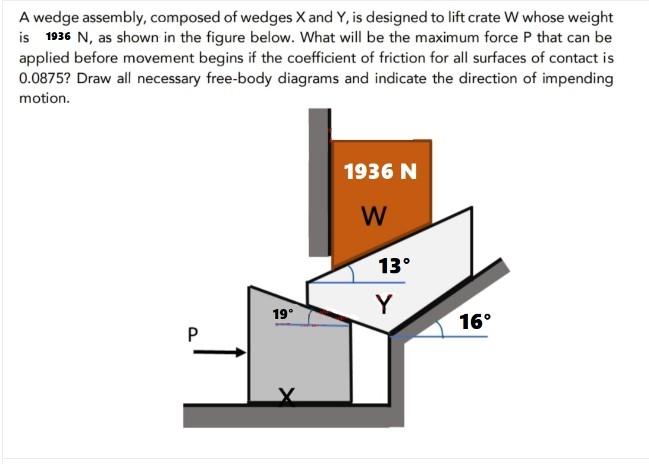

A wedge assembly, composed of wedges X and Y, is designed to lift crate W whose weight is 1936 N, as shown in the figure below. What will be the maximum force P that can be applied before movement begins if the coefficient of friction for all surfaces of contact is 0.0875? Draw all necessary free-body diagrams and indicate the direction of impending motion. 1936 N W P 19° 13° Y 16°
