14-15. (10 pts each, total of 20pts) The figure below shows the zone of capillary rise within a clay layer above the gro

[answerhappygod]

14 15 10 Pts Each Total Of 20pts The Figure Below Shows The Zone Of Capillary Rise Within A Clay Layer Above The Gro 1 (103.93 KiB) Viewed 33 times

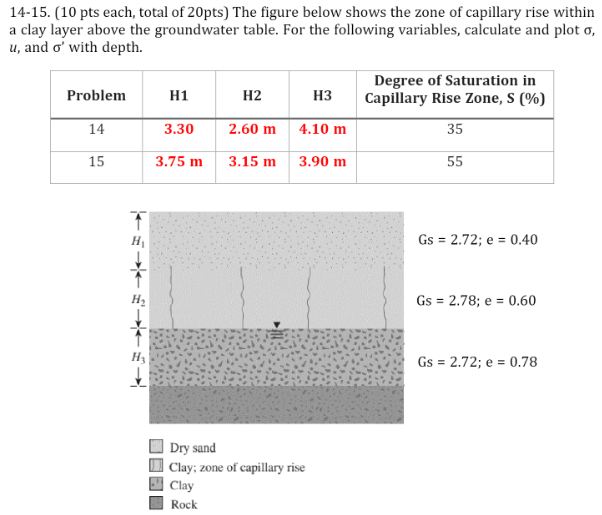

14-15. (10 pts each, total of 20pts) The figure below shows the zone of capillary rise within a clay layer above the groundwater table. For the following variables, calculate and plot o, u, and o' with depth. Degree of Saturation in Capillary Rise Zone, S (%) Problem H1 H2 H3 14 3.30 2.60 m 4.10 m 35 15 3.75 m 3.15 m 3.90 m 55 Gs = 2.72; e = 0.40 Gs = 2.78; e = 0.60 Gs = 2.72; e = 0.78 ↑ Dry sand Clay; zone of capillary rise Clay Rock
