Question 2 (40 marks) a) The beam shown in the Figure below is support by a pin at A and a roller at C and loaded as sho

[answerhappygod]

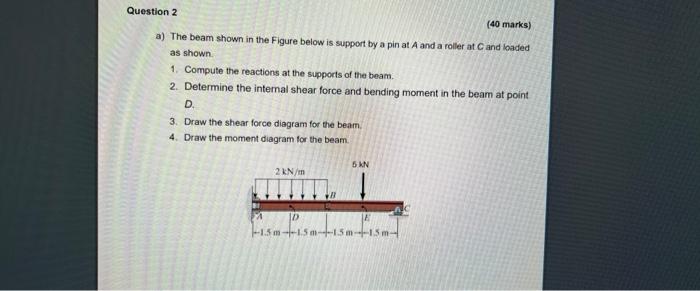

Question 2 40 Marks A The Beam Shown In The Figure Below Is Support By A Pin At A And A Roller At C And Loaded As Sho 1 (27.42 KiB) Viewed 37 times

Question 2 (40 marks) a) The beam shown in the Figure below is support by a pin at A and a roller at C and loaded as shown. 1. Compute the reactions at the supports of the beam. 2. Determine the internal shear force and bending moment in the beam at point D. 3. Draw the shear force diagram for the beam 4. Draw the moment diagram for the beam. 5 KN 2 kN/m M D -1.5 m--1.5m-4-1.5 m-4-1.5 m-
