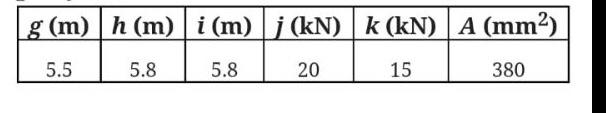

g (m) h (m) i (m) j (kN) k (kN) A (mm²) 5.5 5.8 5.8 20 15 380

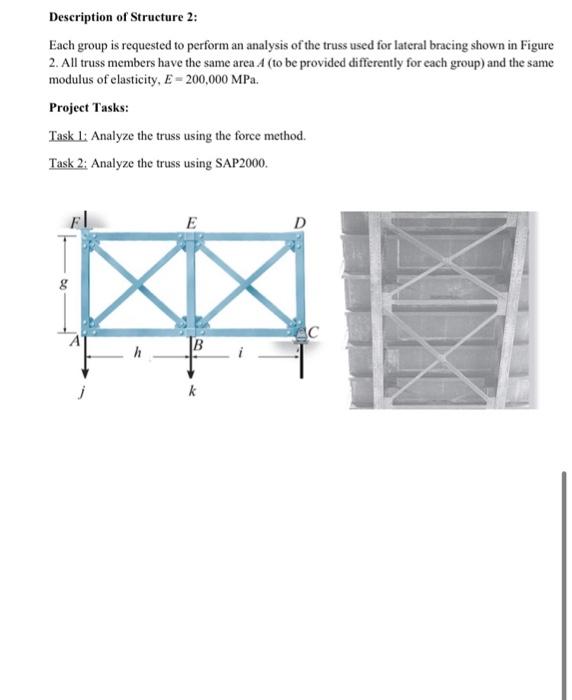

Description of Structure 2: Each group is requested to perform an analysis of the truss used for lateral bracing shown in Figure 2. All truss members have the same area 4 (to be provided differently for each group) and the same modulus of elasticity, E-200,000 MPa. Project Tasks: Task 1: Analyze the truss using the force method. Task 2: Analyze the truss using SAP2000. E D g h B
