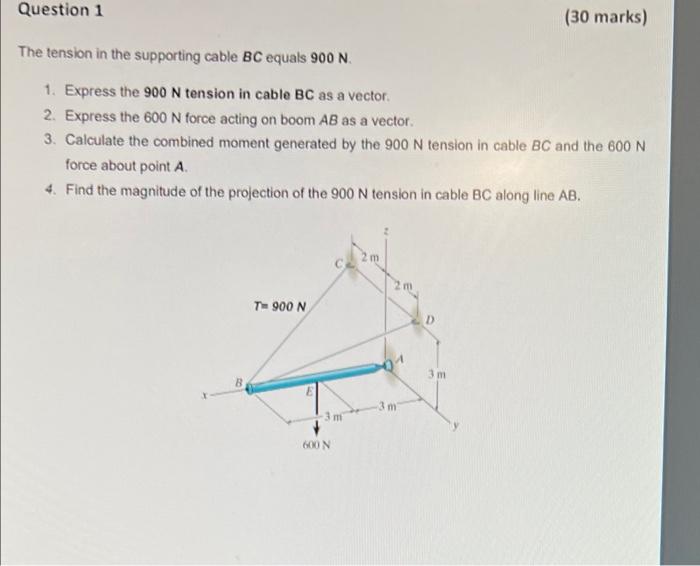

Question 1 (30 marks) The tension in the supporting cable BC equals 900 N. 1. Express the 900 N tension in cable BC as a

[answerhappygod]

Question 1 30 Marks The Tension In The Supporting Cable Bc Equals 900 N 1 Express The 900 N Tension In Cable Bc As A 1 (29.82 KiB) Viewed 30 times

Question 1 (30 marks) The tension in the supporting cable BC equals 900 N. 1. Express the 900 N tension in cable BC as a vector. 2. Express the 600 N force acting on boom AB as a vector. 3. Calculate the combined moment generated by the 900 N tension in cable BC and the 600 N force about point A. 4. Find the magnitude of the projection of the 900 N tension in cable BC along line AB. T= 900 N D 3 m 600 N 3m
