Question 2 (a) The following diagram shows three forces (200 N, 250 N and 350 N) acting on a structure that is attached

[answerhappygod]

Question 2 A The Following Diagram Shows Three Forces 200 N 250 N And 350 N Acting On A Structure That Is Attached 1 (24.67 KiB) Viewed 34 times

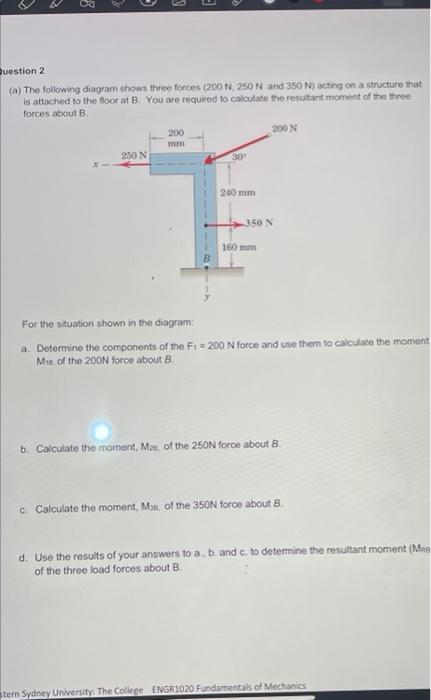

Question 2 (a) The following diagram shows three forces (200 N, 250 N and 350 N) acting on a structure that is attached to the floor at B. You are required to calculate the resultant moment of the three forces about B 200 200 N mm 250 N 30 240 mm 160 mm For the situation shown in the diagram: a. Determine the components of the Fi= 200 N force and use them to calculate the moment Mie, of the 200N force about B. b. Calculate the moment, Mas of the 250N force about B. c. Calculate the moment, Max, of the 350N force about B. d. Use the results of your answers to a., b. and c. to determine the resultant moment (Mes of the three load forces about B. tern Sydney University: The College ENGR1020 Fundamentals of Mechanics 350 N
