Question 1 (30 marks) The tension in the supporting cable BC equals 900 N. 1. Express the 900 N tension in cable BC as a

[answerhappygod]

Question 1 30 Marks The Tension In The Supporting Cable Bc Equals 900 N 1 Express The 900 N Tension In Cable Bc As A 1 (112.79 KiB) Viewed 17 times

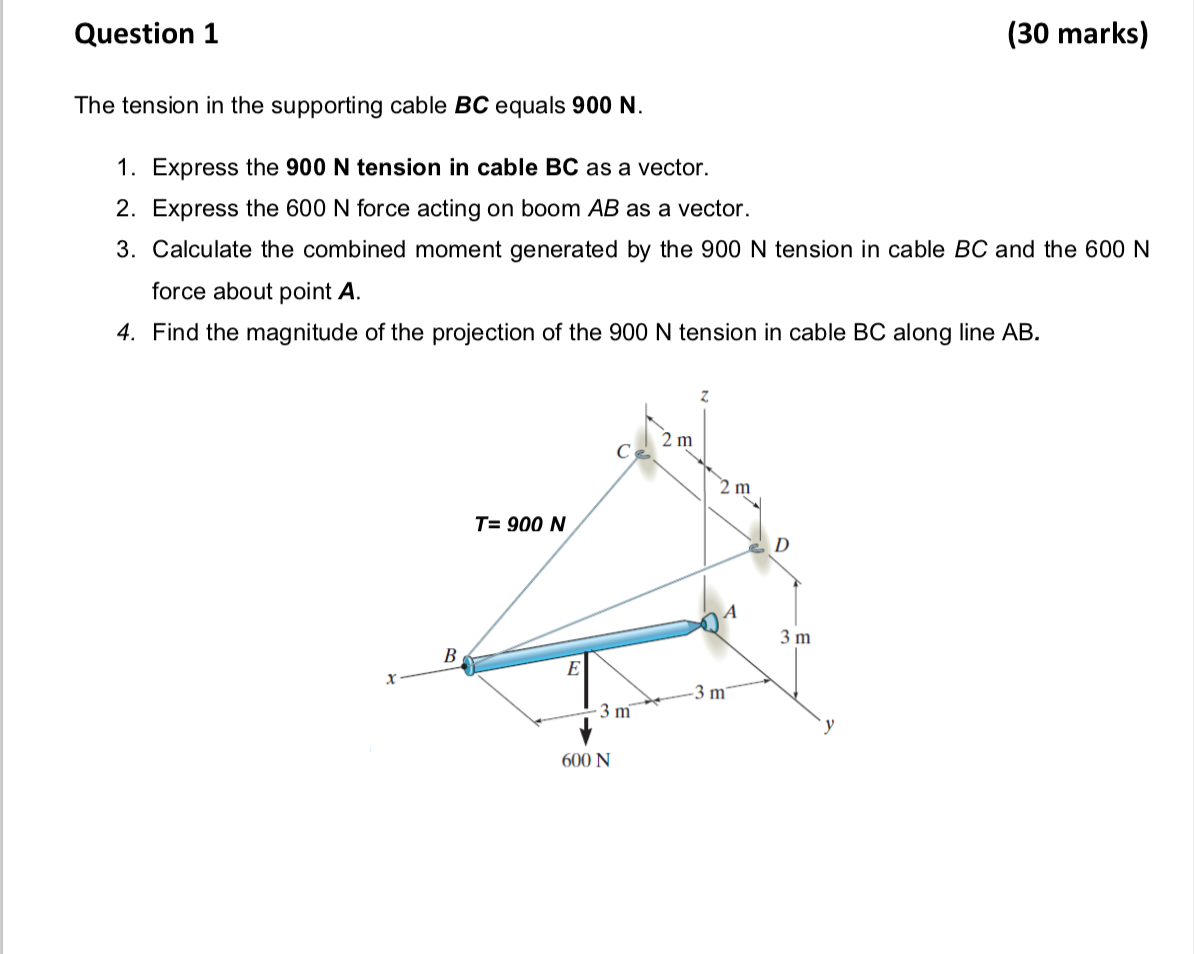

Question 1 (30 marks) The tension in the supporting cable BC equals 900 N. 1. Express the 900 N tension in cable BC as a vector. 2. Express the 600 N force acting on boom AB as a vector. 3. Calculate the combined moment generated by the 900 N tension in cable BC and the 600 N force about point A. 4. Find the magnitude of the projection of the 900 N tension in cable BC along line AB. Z C T= 900 N x B E 3 m 600 N 2 m 2 m -3 m D 3 m
