Question 2 (20 marks) The beam shown in Figure 2 supports a distributed live load of 5.0 kN/m and a single concentrated

[answerhappygod]

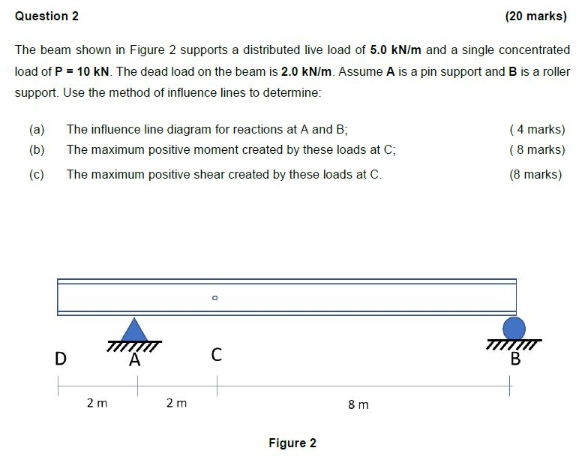

Question 2 20 Marks The Beam Shown In Figure 2 Supports A Distributed Live Load Of 5 0 Kn M And A Single Concentrated 1 (148.02 KiB) Viewed 27 times

Question 2 (20 marks) The beam shown in Figure 2 supports a distributed live load of 5.0 kN/m and a single concentrated load of P = 10 kN. The dead load on the beam is 2.0 kN/m. Assume A is a pin support and B is a roller support. Use the method of influence lines to determine: (a) The influence line diagram for reactions at A and B; (4 marks) (8 marks) (b) The maximum positive moment created by these loads at C; (C) The maximum positive shear created by these loads at C. (8 marks) D C 8 m 2 m 2 m Figure 2
