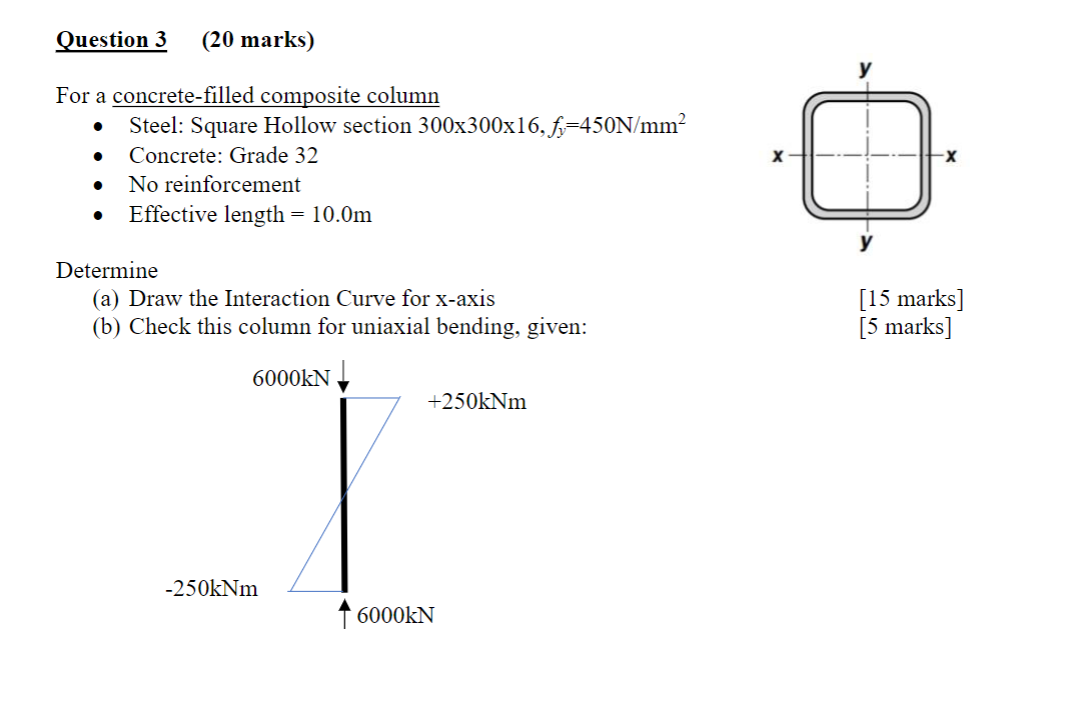

Question 3 (20 marks) For a concrete-filled composite column ● Steel: Square Hollow section 300x300x16, f₁=450N/mm² ● Concrete: Grade 32 ● No reinforcement ● Effective length = 10.0m Determine (a) Draw the Interaction Curve for x-axis (b) Check this column for uniaxial bending, given: 6000KN +250kNm J -250kNm 6000KN X -X [15 marks] [5 marks]
