Consider the gable frame shown in (Figure 1). Assume that A. B. and C are pin connections. The purlin loads such as D an

[answerhappygod]

Consider The Gable Frame Shown In Figure 1 Assume That A B And C Are Pin Connections The Purlin Loads Such As D An 1 (36.24 KiB) Viewed 39 times

Consider The Gable Frame Shown In Figure 1 Assume That A B And C Are Pin Connections The Purlin Loads Such As D An 2 (57.79 KiB) Viewed 39 times

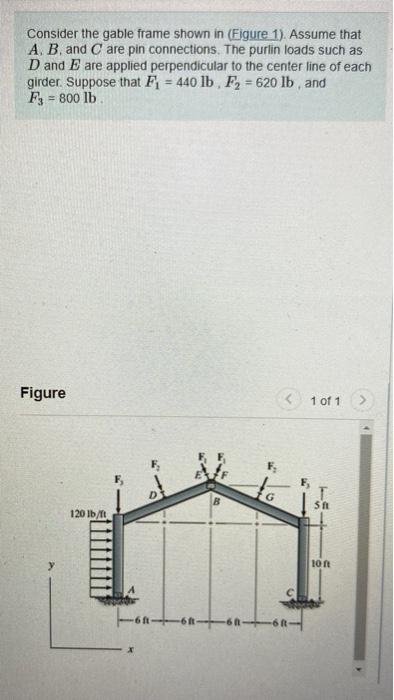

Consider the gable frame shown in (Figure 1). Assume that A. B. and C are pin connections. The purlin loads such as D and E are applied perpendicular to the center line of each girder. Suppose that F₁ = 440 lb, F₂ = 620 lb, and F3800 lb. 1 of 1 Figure T SAL 10 ft 120 lb/ft -6 k F₂ G 6 ft-

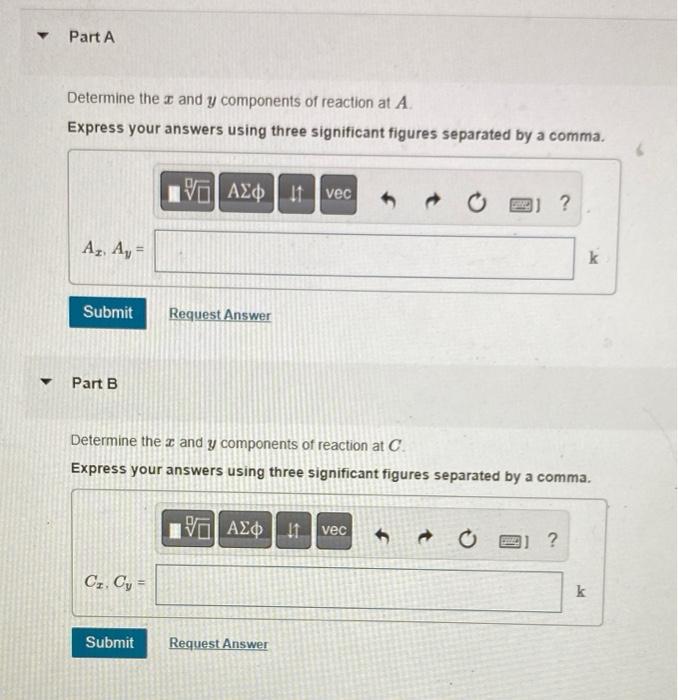

Y ▾ Part A Determine the and y components of reaction at A. Express your answers using three significant figures separated by a comma. VAX Ivec ΑΣΦ 11 ? Az, Ay= k Submit Request Answer Part B Determine the x and y components of reaction at C Express your answers using three significant figures separated by a comma. 195| ΑΣΦ | 11 vec 1 ? Cz. Cy= Submit Request Answer Y k Py
