[25 pts] 1.) An upgradient of 2.5% meets a downgradient of 2% at station kilometer 10+8$$.26 and at elevation of 64.$$ m

Post by answerhappygod »

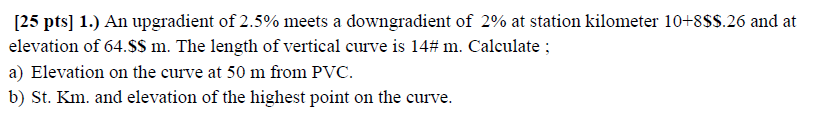

25 Pts 1 An Upgradient Of 2 5 Meets A Downgradient Of 2 At Station Kilometer 10 8 26 And At Elevation Of 64 M 1
25 Pts 1 An Upgradient Of 2 5 Meets A Downgradient Of 2 At Station Kilometer 10 8 26 And At Elevation Of 64 M 1 (15.86 KiB) Viewed 30 times
Elevation: 64.46m
Vertical curve: 140m
[25 pts] 1.) An upgradient of 2.5% meets a downgradient of 2% at station kilometer 10+8$$.26 and at elevation of 64.$$ m. The length of vertical curve is 14# m. Calculate ; a) Elevation on the curve at 50 m from PVC. b) St. Km. and elevation of the highest point on the curve.
