Q2. Use an appropriate approximate method to produce the shear force diagrams and bending moment diagrams for the entire

Post by answerhappygod »

Q2 Use An Appropriate Approximate Method To Produce The Shear Force Diagrams And Bending Moment Diagrams For The Entire 1
Q2 Use An Appropriate Approximate Method To Produce The Shear Force Diagrams And Bending Moment Diagrams For The Entire 1 (78.38 KiB) Viewed 18 times

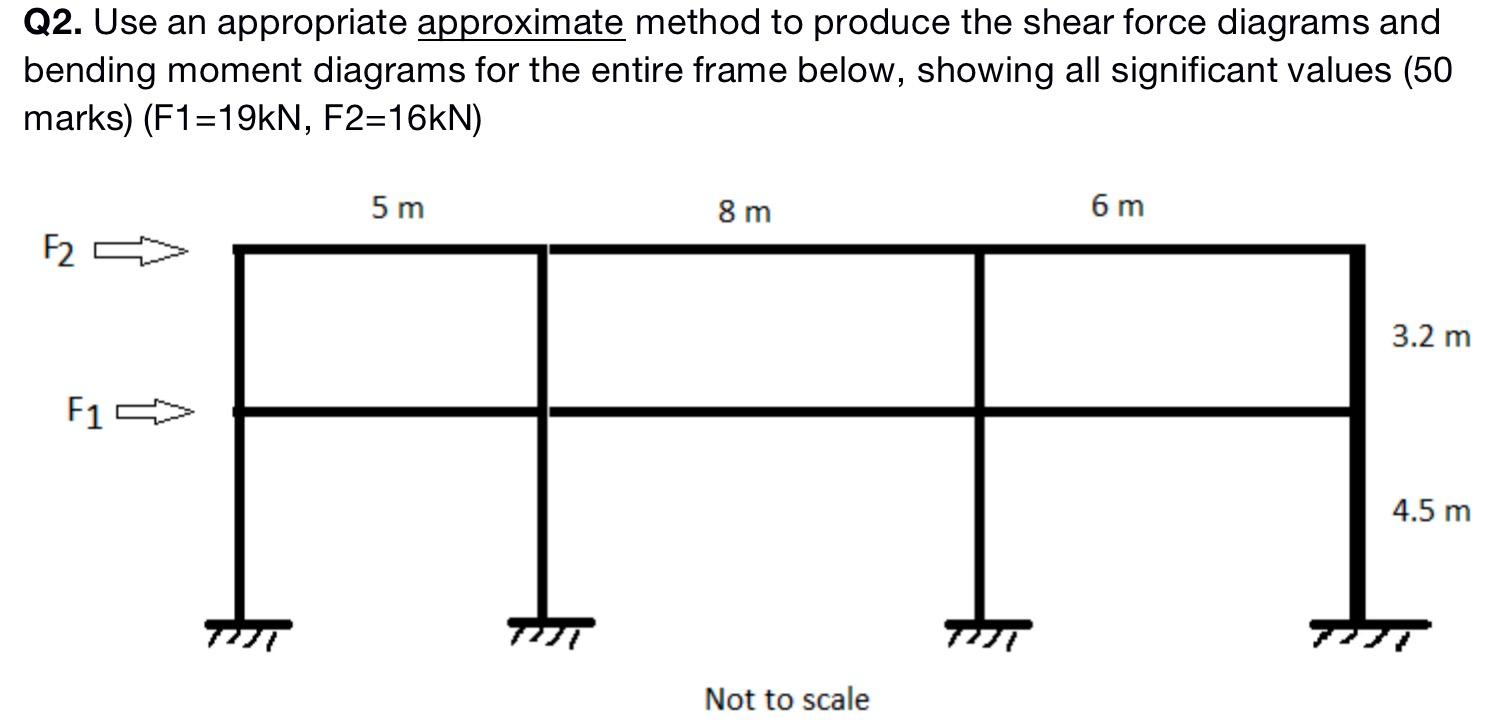

Q2. Use an appropriate approximate method to produce the shear force diagrams and bending moment diagrams for the entire frame below, showing all significant values (50 marks) (F1=19kN, F2=16kN) 5 m 8 m 6 m F2 = 3.2 m F1 4.5 m Not to scale
