A preliminary highway location has been made by locating tangents. Deflection angles have been measured at each Pl, and

[answerhappygod]

A Preliminary Highway Location Has Been Made By Locating Tangents Deflection Angles Have Been Measured At Each Pl And 1 (201.35 KiB) Viewed 29 times

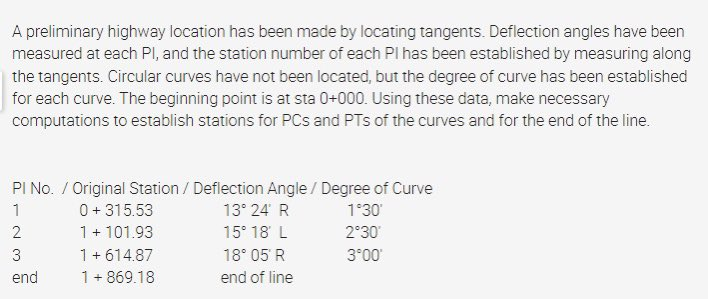

A preliminary highway location has been made by locating tangents. Deflection angles have been measured at each Pl, and the station number of each Pl has been established by measuring along the tangents. Circular curves have not been located, but the degree of curve has been established for each curve. The beginning point is at sta 0+000. Using these data, make necessary computations to establish stations for PCs and PTs of the curves and for the end of the line. PI No. / Original Station / Deflection Angle / Degree of Curve 1 0+315.53 13° 24' R 1°30' 2 1 + 101.93 15° 18' L 2°30 3 1 + 614.87 18° 05 R 3°00' end 1 +869.18 end of line
