5. Using the Method of Joints, find the magnitude and sense (Tension or Compression) of the internal forces in members a
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
5. Using the Method of Joints, find the magnitude and sense (Tension or Compression) of the internal forces in members a

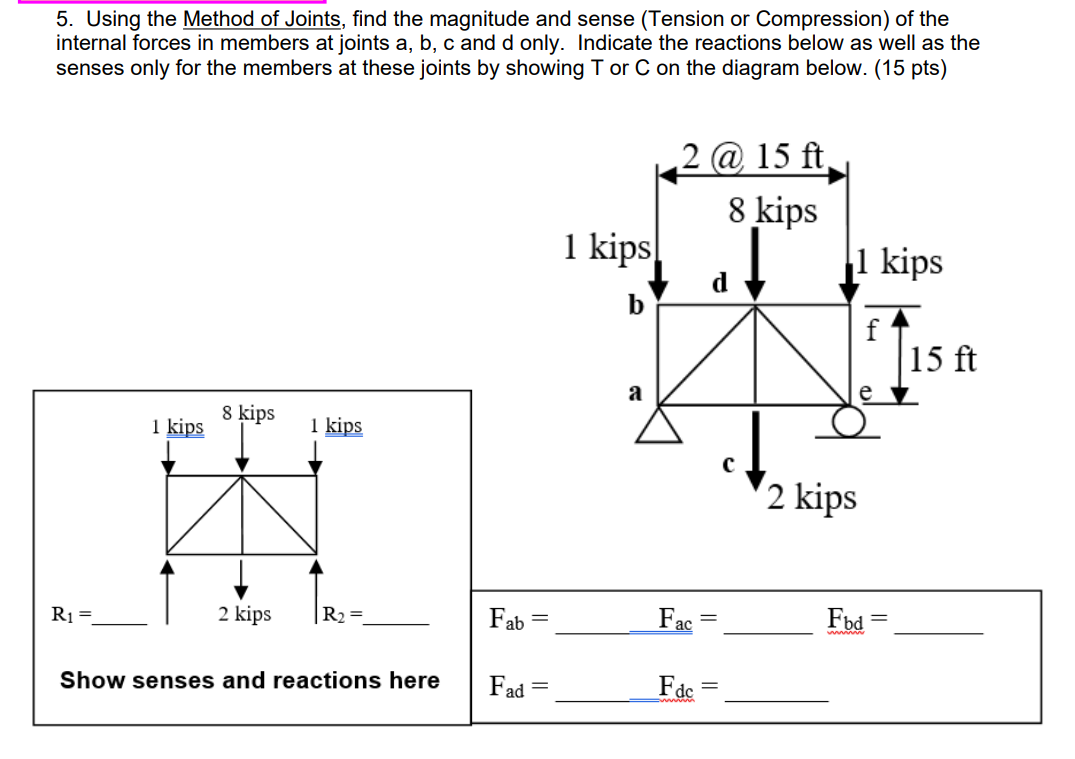

5. Using the Method of Joints, find the magnitude and sense (Tension or Compression) of the internal forces in members at joints a, b, c and d only. Indicate the reactions below as well as the senses only for the members at these joints by showing T or C on the diagram below. (15 pts) 2 @ 15 ft. 8 kips 1 kips 1 kips d a 8 kips 1 kips 1 kips A R₁ = 2 kips |R₂ = Show senses and reactions here Fab = Fad= Fac Fac = 2 kips Fbd 15 ft
