Your answer is incorrect. The solid 24-mm-diameter steel [E = 220 GPa] shaft supports two belt pulleys. Assume that the

Post by answerhappygod »

Your Answer Is Incorrect The Solid 24 Mm Diameter Steel E 220 Gpa Shaft Supports Two Belt Pulleys Assume That The 1
Your Answer Is Incorrect The Solid 24 Mm Diameter Steel E 220 Gpa Shaft Supports Two Belt Pulleys Assume That The 1 (39.11 KiB) Viewed 24 times

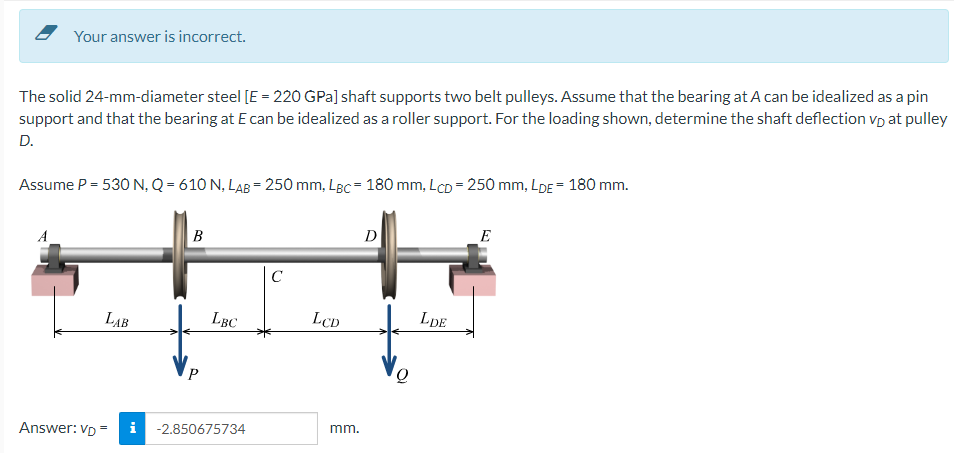

Your answer is incorrect. The solid 24-mm-diameter steel [E = 220 GPa] shaft supports two belt pulleys. Assume that the bearing at A can be idealized as a pin support and that the bearing at E can be idealized as a roller support. For the loading shown, determine the shaft deflection vi at pulley D. Assume P = 530 N, Q = 610 N, LAB= 250 mm, LBc = 180 mm, LCD = 250 mm, LDE = 180 mm. B D E C LAB Answer: VD Mo LBC P -2.850675734 LCD mm. LDE
