10. The strain rosette shown in the figure was used to obtain normal strain data at a point on the free surface of a mac

[answerhappygod]

10 The Strain Rosette Shown In The Figure Was Used To Obtain Normal Strain Data At A Point On The Free Surface Of A Mac 1 (256.45 KiB) Viewed 37 times

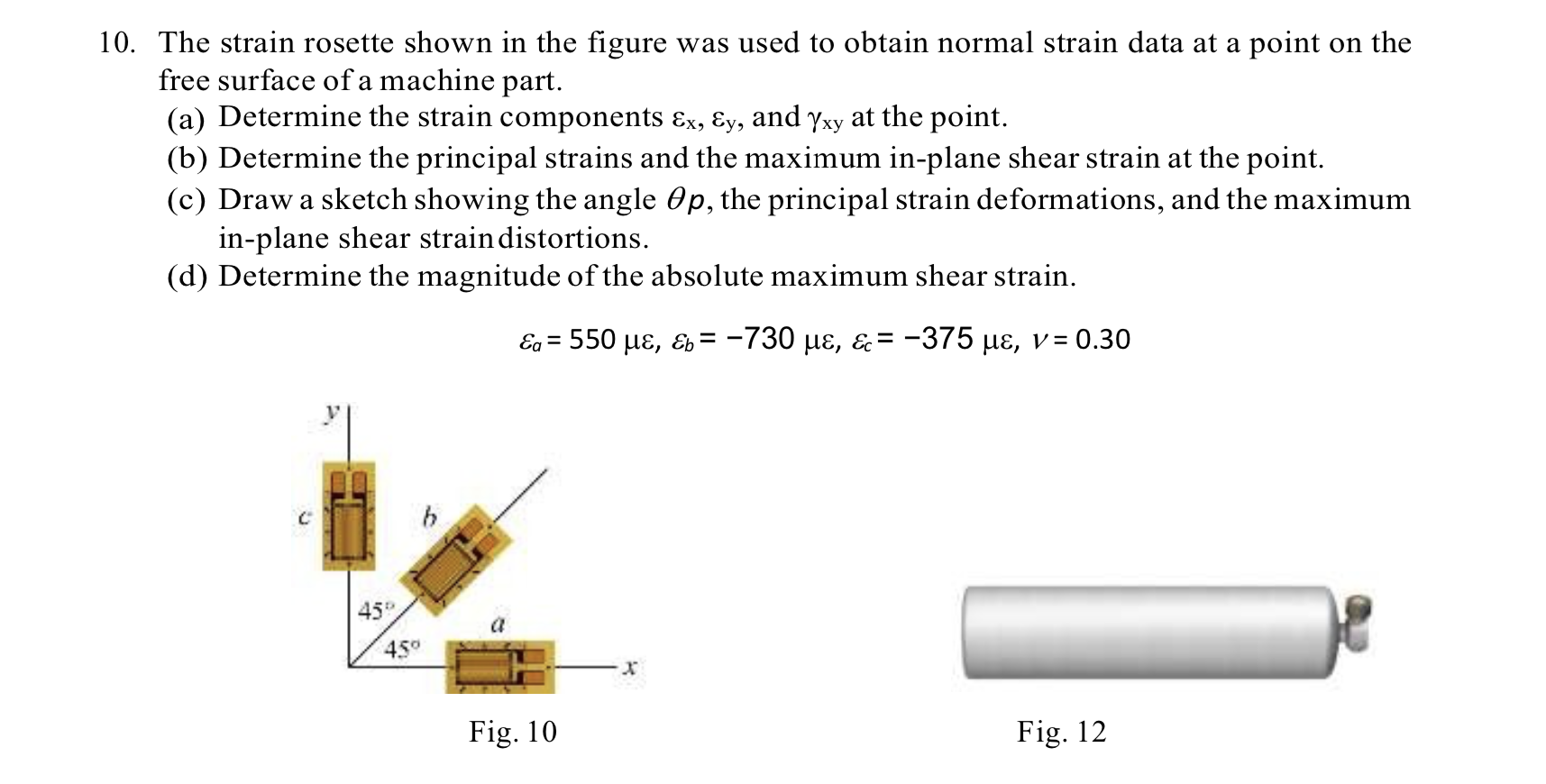

10. The strain rosette shown in the figure was used to obtain normal strain data at a point on the free surface of a machine part. (a) Determine the strain components &x, &y, and Yxy at the point. (b) Determine the principal strains and the maximum in-plane shear strain at the point. (c) Draw a sketch showing the angle Op, the principal strain deformations, and the maximum in-plane shear strain distortions. (d) Determine the magnitude of the absolute maximum shear strain. Ea = 550 µε, &b= −730 µɛ, &= −375 με, v = 0.30 45° X Fig. 12 45° Fig. 10
