9. The strain components &x, &y, and yxy are given for a point in a body subjected to plane strain. Determine the princi

[answerhappygod]

9 The Strain Components X Y And Yxy Are Given For A Point In A Body Subjected To Plane Strain Determine The Princi 1 (53.01 KiB) Viewed 26 times

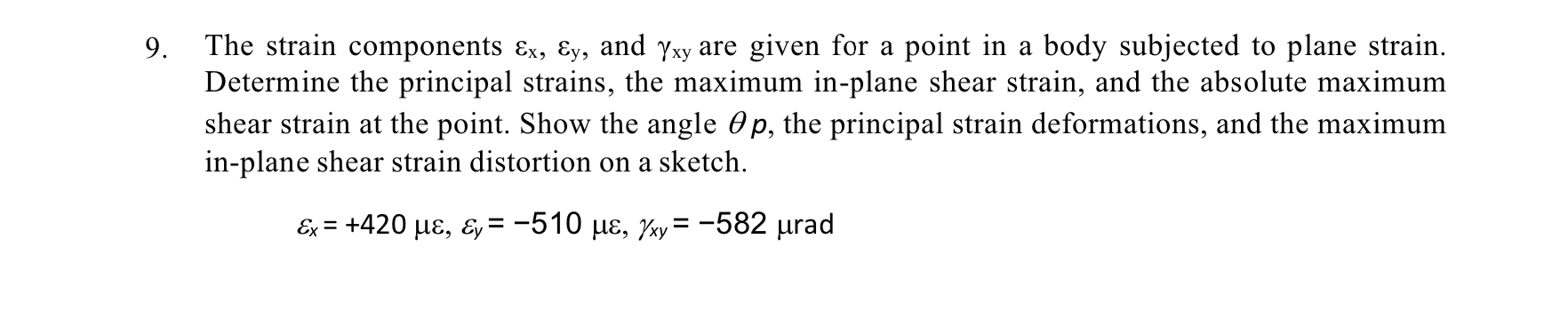

9. The strain components &x, &y, and yxy are given for a point in a body subjected to plane strain. Determine the principal strains, the maximum in-plane shear strain, and the absolute maximum shear strain at the point. Show the angle Op, the principal strain deformations, and the maximum in-plane shear strain distortion on a sketch. Ex = +420 µε, &y= −510 µɛ, ½xy = −582 μrad
