8. The strain components &x, &y, and Yxy are given for a point in a body subjected to plane strain. Determine the strain

[answerhappygod]

8 The Strain Components X Y And Yxy Are Given For A Point In A Body Subjected To Plane Strain Determine The Strain 1 (87.93 KiB) Viewed 27 times

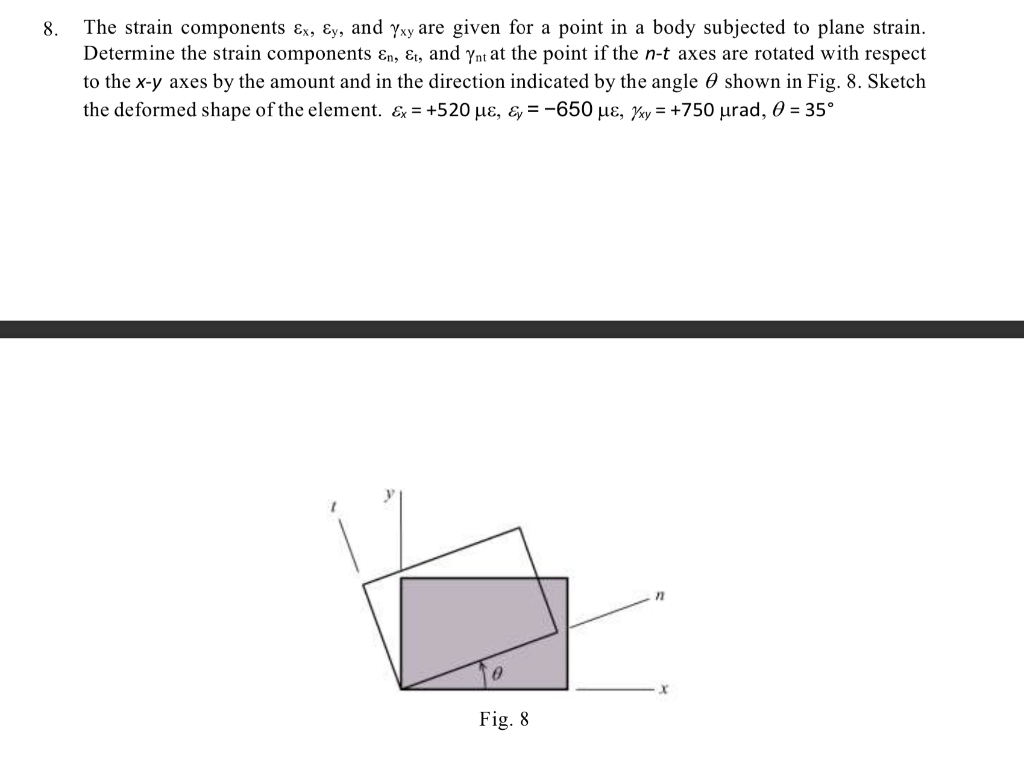

8. The strain components &x, &y, and Yxy are given for a point in a body subjected to plane strain. Determine the strain components &n, &t, and Ynt at the point if the n-t axes are rotated with respect to the x-y axes by the amount and in the direction indicated by the angle shown in Fig. 8. Sketch the deformed shape of the element. &x=+520 µɛ, &y=-650 µ&, xy = +750 μrad, 0 = 35° 0 Fig. 8
