A wedge assembly, composed of wedges X and Y, is designed to lift crate W whose weight is 1CDE N, as shown in the figure

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

A wedge assembly, composed of wedges X and Y, is designed to lift crate W whose weight is 1CDE N, as shown in the figure

Post by answerhappygod »

A Wedge Assembly Composed Of Wedges X And Y Is Designed To Lift Crate W Whose Weight Is 1cde N As Shown In The Figure 1
A Wedge Assembly Composed Of Wedges X And Y Is Designed To Lift Crate W Whose Weight Is 1cde N As Shown In The Figure 1 (45.49 KiB) Viewed 32 times

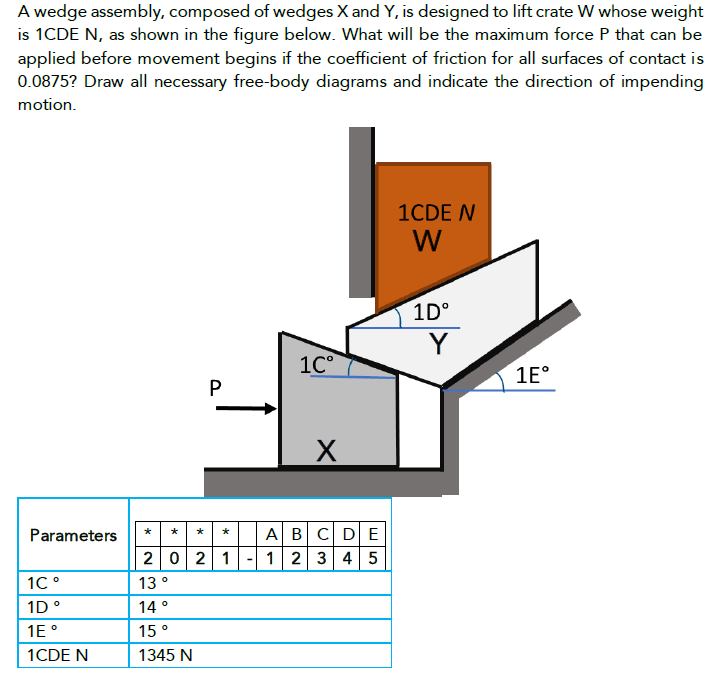

A wedge assembly, composed of wedges X and Y, is designed to lift crate W whose weight is 1CDE N, as shown in the figure below. What will be the maximum force P that can be applied before movement begins if the coefficient of friction for all surfaces of contact is 0.0875? Draw all necessary free-body diagrams and indicate the direction of impending motion. 1CDE N W 1Dº Y P * * * * 20 21 13° 14° 15° 1345 N Parameters 1Cº 1Dº 1E° 1CDE N 1Cº X A B C D E - 1 2 3 4 5 1E⁰
