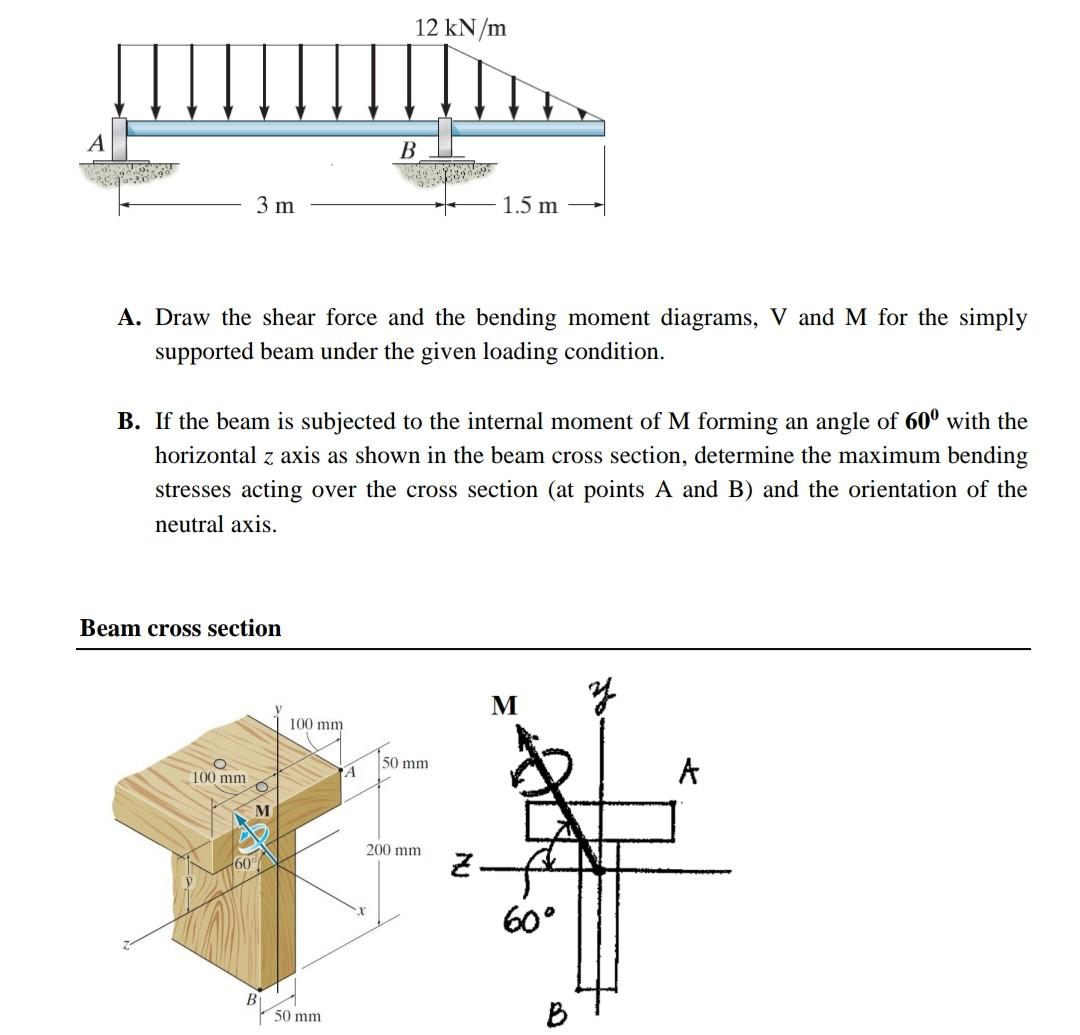

A B 3 m 1.5 m A. Draw the shear force and the bending moment diagrams, V and M for the simply supported beam under the given loading condition. B. If the beam is subjected to the internal moment of M forming an angle of 600 with the horizontal z axis as shown in the beam cross section, determine the maximum bending stresses acting over the cross section (at points A and B) and the orientation of the neutral axis. Beam cross section M y 100 mm 60 M 100 mm 50 mm 12 kN/m A 50 mm 200 mm 2. 60° B A
