Predict the reactions in this indeterminate beam using the method of superposition. Assume that L = 25 ft., the beam cross-section is a×b which a=2”and b=4”. the wood has a modulus of elasticity (E) of 100 ksi, and the weight of the flooring is w = 88 lb/ft.

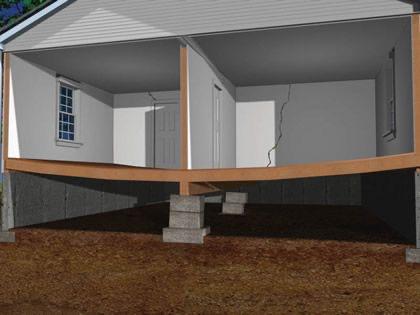

Name at least 3 undesirable secondary effects of excessive beam deflection that you observe in picture above.Share at least 2 solutions to prevent the issue.
Name at least 3 undesirable secondary effects of excessive beam deflection that you observe in picture above.Share at least 2 solutions to prevent the issue.
Name at least 3 undesirable secondary effects of excessive beam deflection that you observe in picture above.
Share at least 2 solutions to prevent the issue.

Pedid The Reactions In T Name At Least Www Hele Training B Stive Bean Beat Cristiach And The Wood He A Mode Of Elasty O 4 (11.7 KiB) Viewed 29 times

Pedid the reactions in T Name at least www Hele training B stive bean beat cristiach and the wood he a mode of elasty) of 100 and the weight of the orig petare above



L W L R₁ b a Beam cross section
