2 of 2 1/2 4. Determine the reactions (B, C and E) and draw the shear and bending moment diagrams for the beams shown in

Post by answerhappygod »

2 Of 2 1 2 4 Determine The Reactions B C And E And Draw The Shear And Bending Moment Diagrams For The Beams Shown In 1
2 Of 2 1 2 4 Determine The Reactions B C And E And Draw The Shear And Bending Moment Diagrams For The Beams Shown In 1 (20.5 KiB) Viewed 25 times

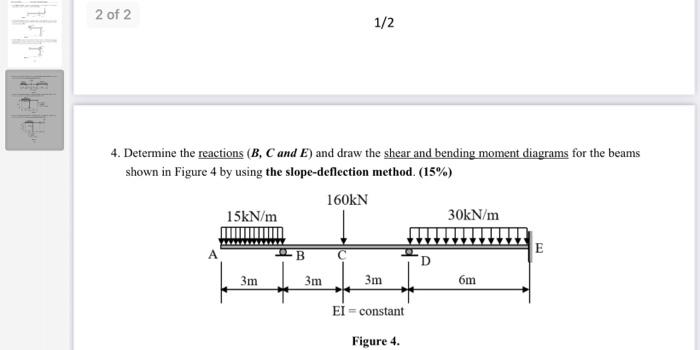

2 of 2 1/2 4. Determine the reactions (B, C and E) and draw the shear and bending moment diagrams for the beams shown in Figure 4 by using the slope-deflection method. (15%) 160KN 15kN/m 30kN/m E 3m 6m B 3m 3m EI= constant Figure 4. D
